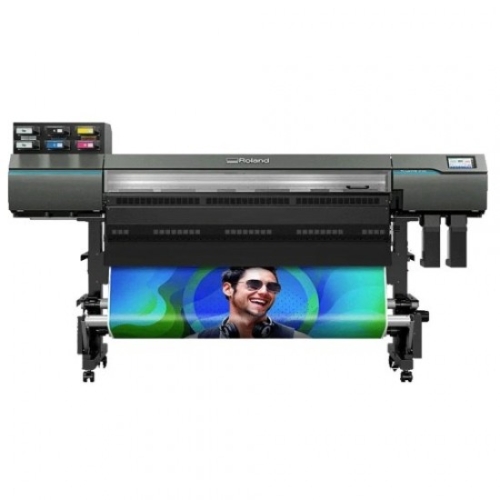

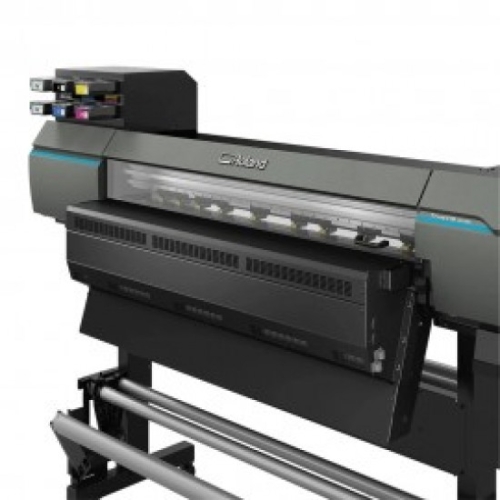

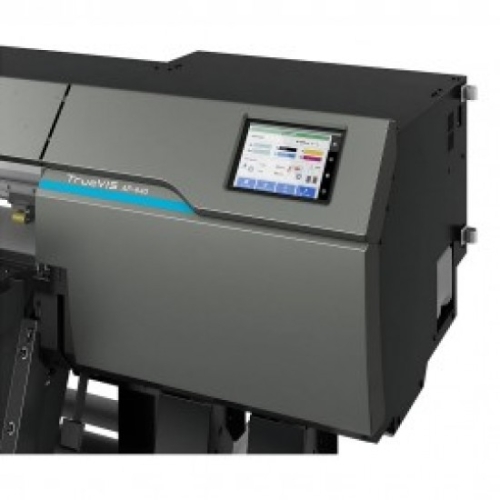

ROLAND TRUEVIS AP-640

SPECIFICATIONS

Piezo ink-jet method

ACCEPTABLE MEDIA WIDTHS

5.9 to 20.3 in. (150 to 515 mm)

Media

Width

10.2 to 64 in. (259 to 1,625 mm)

Thickness

Max. 0.039 in. (1.0 mm) with liner

Roll outer diameter

Max. 9.8 in. (250 mm)

Roll weight

Max. 99 lb. (45 kg)

Core diameter

3 in. (76.2 mm) or 2 in. (50.8 mm)

Printing width

Max. 63.5 in. (1,615 mm)

Ink

Type

Resin ink 700 ml pouch

Colors

Four colors (cyan, magenta, yellow, and black) and optimizer

Printing resolution (dots per inch)

Max. 1200 dpi

Ink drying system

Print heater set temperature: 77 to 113°F (25 to 45°C)
Dryer set temperature: 158 to 230°F (70 to 110°C)

Connectivity

Ethernet (100BASE-TX/1000BASE-T, automatic switching)

Power-saving function

Automatic sleep feature

Rated Input

Printer: 200-240 Va.c. 50/60 Hz 3 A
Dryer 1: 200-240 Va.c. 50/60 Hz 10 A
Dryer 2: 200-240 Va.c. 50/60 Hz 10 A

Power consumption

During operation

Approx. 4,000 W

Sleep mode

Approx. 65 W

Acoustic noise level

During operation

69 dB (A) or less

During standby

53 dB (A) or less

Dimensions (Width x Depth x Height)

113.7 in. × 33 in. × 61.1 in. (2,886 mm × 836 mm × 1,550 mm)

Weight (with stand)

587 lb. (266 kg)

Internal Memory

1 GB (RAM)

Environment

During operation

Temperature: 68 to 86 °F (20 to 30 °C),
Humidity: 20 to 80 %RH (no condensation)

Recommended Environment

Temperature: 68 to 77 °F (20 to 25 °C),
Humidity: 40 to 60 %RH (no condensation)

Not operating

Temperature: 41 to 104 °F (5 to 40 °C),
Humidity: 20 to 80 %RH (no condensation)

Included items

Dedicated stand, power cords, dryers, media
take-up unit, media holders, separating knife,
replacement blade, cleaning liquid bottle for
maintenance, drain bottle, User's Manual, software
(VersaWorks, Roland DG Connect), etc.
