The Canon imagePROGRAF iPF680 24-inch large format printer builds on Canon’s award winning line of 5-color printers, and provides enhancements in both hardware, and software capabilities. The iPF680 device is capable of producing an Arch D (24” x 36”) print in up to 25 seconds using Economy mode! The printer has the capability of accommodating 300ml ink tanks, geared towards lowering the cost per print. The included Sub-ink tank system allows for users to use all of the ink in the tank before replacing, while also replacing the empty ink tanks on-the-fly without having to stop a job mid-print and sacrifice print quality.
SPECIFICATION :
| Printer Type | 5-Color 24-inch Printer |
| Number of Nozzles | Total: 15,360 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each |
| Nozzle Pitch | 1,200 dpi Non-firing nozzle detection and compensation |
| OS Compatibility | Windows® (XP/Vista/7/8) Macintosh® (OSX 10.6.8-10.9X) |
| Standard Interfaces | USB 2.0 High-Speed 10/100/1000 Base-T/TX |
| Ink Droplet Size | 4 picoliter |
| Ink Capacity | 130ml or 300ml per color |
| Ink Droplet Size | Dye/Pigment Reactive Ink |
| Color Set | Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black |
| Buffer Ram | 256 MB |
| Media Width | Cut Sheet - 8"- 24" (203.2mm - 610mm) Roll Feed - 10" - 24" (254mm - 610mm) |
| Media Thickness | 0.07-0.8mm (2.8-31.4mil) |
| Maximum Roll Print Length | Roll Feed - 59' (18 meters) Cut Sheet - 63" (1.6 meters) |
| Maximum Media Roll Diameter | 5.9" (150mm) |
| Borderless Printing Width | 10", B4, A3, 14", A2, 17", B2 (20.28"/515 mm), A1 (23.38"/594mm), 24" |
| Paper Feed Method | Roll Feed: One Roll, Top-loading, Front output Cut Sheet: One sheet, Top loading, Front output |
| Languages | GARO (Canon Proprietary) |
| Noise Level Approx | Operation: 48 dB (A) or less Standby: 35 dB (A) or less Acoustic Power: Approx. 6.5 Bels |
| Physical Dimensions | 42" (H) x 39" (W) x 35" (D) (When basket is open) 42" (H) x 39" (W) x 43" (D) (When basket is extended for flatbed stacking) Box Dimensions/ Weight: 45" (H) x 44" (W) x 35" (D) Approximately 205 lbs |
| Weight | Approximately 125 lbs. with stand |
| Power Source | AC-100-240V (50-60Hz) |
| Power Consumption | Maximum: 140W or less Standby 5W or less Power Off: .5W or less (Compliant with Executive Order) |
| Operating Environment | Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation) |
| User-replaceable items | Print Head: PF-04 Maintenance Cartridge: MC-10 Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK), PFI-207 (300ml: C, M, Y, BK, MBK) |
| Software | Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility2, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD |

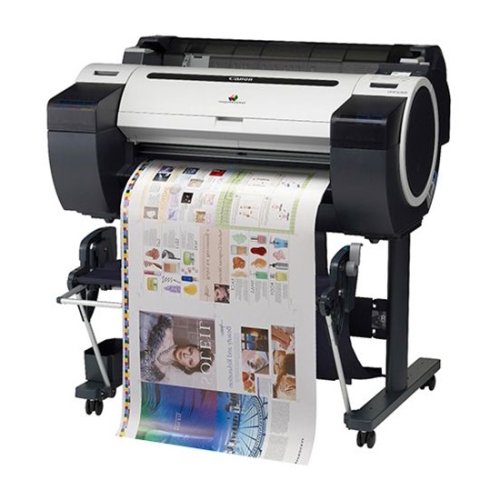

Canon imagePROGRAF iPF680 24 Large-Format Inkjet Printer
- Product Code: CN11563
The Canon imagePROGRAF iPF680 24-inch large format printer builds on Canon’s award winning line of 5-color printers, and provides enhancements in both hardware, and software capabilities. The iPF680 device is capable of producing an Arch D (24” x 36”) print in up to 25 seconds using Economy mode! The printer has the capability of accommodating 300ml ink tanks, geared towards lowering the cost per print. The included Sub-ink tank system allows for users to use all of the ink in the tank before replacing, while also replacing the empty ink tanks on-the-fly without having to stop a job mid-print and sacrifice print quality.
SPECIFICATION :
| Printer Type | 5-Color 24-inch Printer |
| Number of Nozzles | Total: 15,360 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each |
| Nozzle Pitch | 1,200 dpi Non-firing nozzle detection and compensation |
| OS Compatibility | Windows® (XP/Vista/7/8) Macintosh® (OSX 10.6.8-10.9X) |
| Standard Interfaces | USB 2.0 High-Speed 10/100/1000 Base-T/TX |
| Ink Droplet Size | 4 picoliter |
| Ink Capacity | 130ml or 300ml per color |
| Ink Droplet Size | Dye/Pigment Reactive Ink |
| Color Set | Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black |
| Buffer Ram | 256 MB |
| Media Width | Cut Sheet - 8"- 24" (203.2mm - 610mm) Roll Feed - 10" - 24" (254mm - 610mm) |
| Media Thickness | 0.07-0.8mm (2.8-31.4mil) |
| Maximum Roll Print Length | Roll Feed - 59' (18 meters) Cut Sheet - 63" (1.6 meters) |
| Maximum Media Roll Diameter | 5.9" (150mm) |
| Borderless Printing Width | 10", B4, A3, 14", A2, 17", B2 (20.28"/515 mm), A1 (23.38"/594mm), 24" |
| Paper Feed Method | Roll Feed: One Roll, Top-loading, Front output Cut Sheet: One sheet, Top loading, Front output |
| Languages | GARO (Canon Proprietary) |
| Noise Level Approx | Operation: 48 dB (A) or less Standby: 35 dB (A) or less Acoustic Power: Approx. 6.5 Bels |
| Physical Dimensions | 42" (H) x 39" (W) x 35" (D) (When basket is open) 42" (H) x 39" (W) x 43" (D) (When basket is extended for flatbed stacking) Box Dimensions/ Weight: 45" (H) x 44" (W) x 35" (D) Approximately 205 lbs |
| Weight | Approximately 125 lbs. with stand |
| Power Source | AC-100-240V (50-60Hz) |
| Power Consumption | Maximum: 140W or less Standby 5W or less Power Off: .5W or less (Compliant with Executive Order) |
| Operating Environment | Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation) |
| User-replaceable items | Print Head: PF-04 Maintenance Cartridge: MC-10 Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK), PFI-207 (300ml: C, M, Y, BK, MBK) |
| Software | Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility2, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD |
- Brand: Canon
- Availability: In Stock
USD 1,000.00
Tags:Canon Printer
