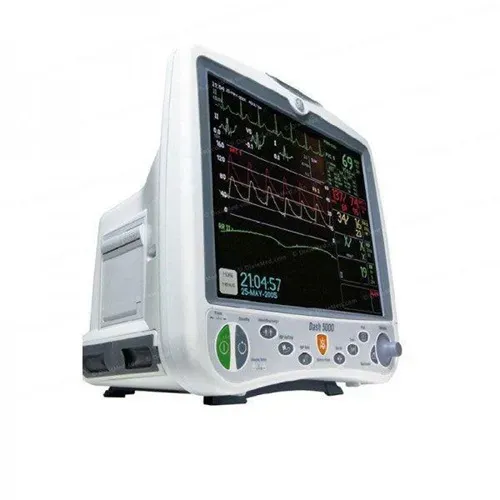

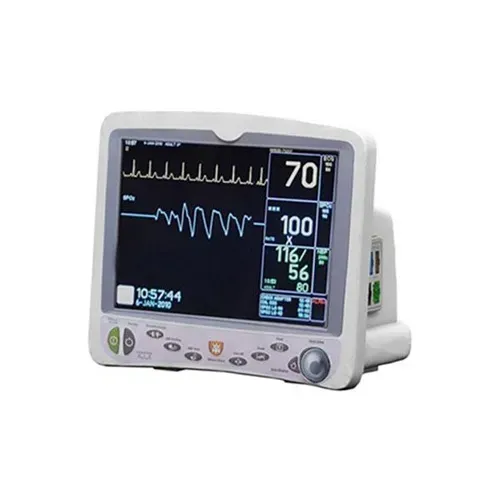

GE DASH 5000 PATIENT MONITOR

The GE Dash 5000 is a portable patient monitor. It has a built-in writer and can connect to the CARESCAPE network. It can connect with an optional wireless card, or by a wired ethernet connection. This Dash Monitor unit can be used to monitor ECG, NIBP, impedance respiration, SpO2, and temperature. This Dash monitor optionally can monitor invasive pressure, BISx, and EtCO2.

• Mainstream and low-flow sidestream CO2 measurement options for neonatal patients and adults.
• Highly configurable. Add features and parameters for different acuity levels.
• Advanced algorithms for all parameters.
• 12.1-inch display.
• Multiple mounting solutions.
• Wired or wireless ECG acquisition.

GE Dash 5000 Specifications

Dimensions

• Height: 11.3 in (28.7cm)
• Width: 12.2 in (30.7 cm)
• Depth: 9.4 in (23.9 cm)
• Weight: 14 lbs. (6.4 kg)

Battery

• Type: Exchangeable Lithium-Ion
• Number of Batteries: Up to 2
• Weight: 0.8 lbs (0.36 kg) each
• Voltage: 11.1 V (nominal)
• Capacity: 3520 mAh
• Charge Time: Less than 4 hours each
• Run Time: 2.5 hours (5.0 hours with 2)

Recorder

• Method: Thermal dot array
• Horizontal Resolution: 480 dots/in
• Vertical Resolution: 200 dots/in
• Waveform Channels: 4
• Paper Width: 1.97 in (50 mm)
• Paper Length: 100 ft (30 m)
• Paper speed: 0.1, 0.5, 1, 5, 10, 12.5, 25, and 50 mm/sec

Display

• Size: 12.1 in diagonal
• Type: Color LCD
• Resolution: 800×600 pixels
• Number of Traces: 6
• Sweep Speed: 6.25, 12.5 or 25 mm/sec
• Parameter Blocks Displayed: Up to 10

Controls

• Standard: Trim knob control plus 5 hard keys: Power, NBP Auto, Zero All, Silence Alarm/Admit, Print

ECG

• 5 Leadwire Cable: I, II, III, V, aVR, aVL, and aVF
• 10 Leadwire Cable (12SL option): V2, V3, V4, V5 and V6
• Voltage Range: ±0.5 mV to ±5 mV
• Signal Width: 40 ms to 120 ms (Q to S)
• Heart Rate Range: 30 to 300 BPM
• Accuracy: ±1% or ±1BPM whichever is greater

Invasive Blood Pressure (Optional)

• Channels: 2
• Transducer Sites: ART, FEM, PA, CVP, RA, LA, ICP, SP. In neonatal mode UCA, and UVC.
• Range: -25 mmHg to 300 mmHg
• Offset: ±150 mmHg

Noninvasive Blood Pressure

• Technique: Oscillometric
• Displayed Parameters: Systolic, diastolic, and mean pressures, time of last measurement
• Modes: Manual, auto, and stat in adult and OR modes; manual and auto in neonatal mode
• Systolic Pressure Range: Adult: 30 to 285 mmHg; Pediatric: 30 to 235 mmHg; Neonatal: 30 to 140 mmHg
• Diastolic Pressure Range: Adult: 10 to 220 mmHg; Pediatric: 10 to 210 mmHg; Neonatal: 10 to 110 mmHg
• Mean Pressure Range: Adult: 20 to 260 mmHg; Pediatric: 20 to 220 mmHg; Neonatal: 20 to 125 mmHg
• Cuff Pressure Range: Adult: 294 ± 6 mmHg; Pediatric: 250 ± 5 mmHg; Neonatal: 147 ± 3 mmHg
• Heart Rate Detection: 30 to 200 beats per minute

BIS – Bispectral Index

• Technology: Supports Aspect Medical BIS-x technology
• Information Displayed: BIS, SQI, SR and SEF, EEG waveform
• BIS Range: 0-100
• Signal Quality Index (SQI) Range: 0-100
• Suppression Ratio (SR) Range: 0-100%
• Spectral Edge Frequency (SEF) Range: 0-30
• Alarms: User-selectable upper and lower BIS limits.

SpO2

• GE Pulse Range: Saturation: Pulse Rate: 0 – 100% SpO2; 30 – 250 beats per minute
• Masimo SET Range: Saturation: 30 to 100% SpO2; Pulse Rate: 25 to 240 beats per minute; Perfusion: 0.02 to 20%
• Nellcor Range: Saturation: 1 to 100% SpO2; Pulse Rate: 20 to 250 beats per minute; Perfusion: 0.03 to 20%

Cardiac Output (CO)

• Range: Cardiac Output: 0.2 – 15 liters per minute; Blood Temperature: 30 – 42°C; Injectate Temperature: 0 – 30°C

Respiration

• Range: Respiration rate: 0 – 200 breaths per minute; Base impedance: 100 – 1000 O at 52.6 kHz excitation frequency; Detection sensitivity: 0.4 to 10 O variation

Temperature

• Temperature Range: 0°C to 45°C (32°F to 113°F)
• Display Resolution: ±0.1°C
• accuracy: ±0.1°C (25°C to 45°C) independent of sensor

Carbon Dioxide (CO2)

• Measurement Technique: Non-dispersive infrared absorption, dual-wavelength ratiometric
• Sensor Type: Novametrix Medical Systems’ Capnostat III
• Measurement Ranges: Pi CO2/Fi CO2: 0 to 100 mmHg/0 to 13%; Pe CO2/Fe CO2: 0 to 100 mmHg/0 to 13%; RR: 0 to 120 breaths/min
