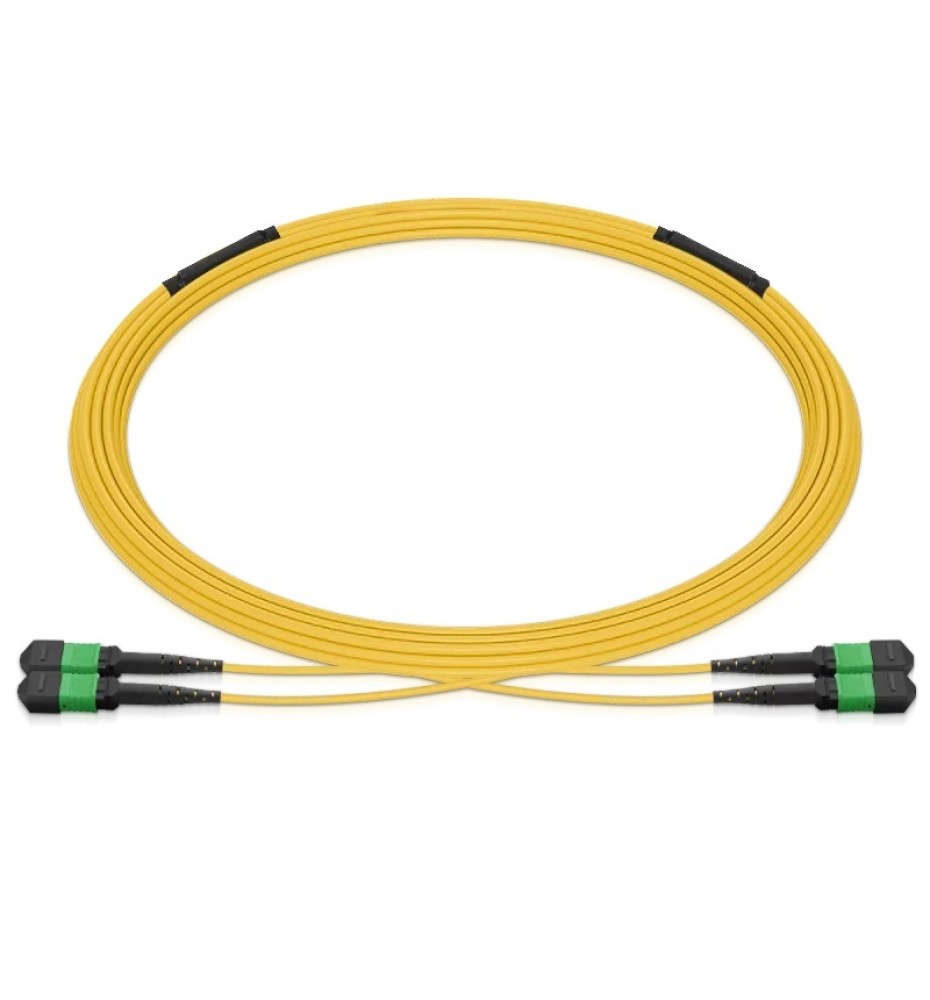

Pre-terminated MPO 2x2 Shuffle Trunk Cable, 16 Fibers, 2xMPO-8 APC Male to 2xMPO-8 APC Male, Single Mode (OS2), Type 2, OFNP, 0.35dB Max, Breakout 80cm, Yellow
- Product Code: S2MPOA16M2
- Availability: In Stock
Fiber Type: 16F Male OS2 Shuffle
The Pre-terminated MPO 2x2 Shuffle Trunk Cable is engineered for high-density network environments and long-distance data transmission. Featuring 16 fibers (2xMPO-8 APC Male to 2xMPO-8 APC Male) with OS2 single mode performance, this cable delivers exceptional return loss (≥60dB) and ultra-low attenuation. Built with an OFNP plenum-rated double jacket in high-visibility yellow, it offers top-tier safety compliance, durability, and simplified cable management.
KEY FEATURES
- High Density Design: Pre-terminated 2x2 shuffle layout optimizes routing efficiency in complex patching systems.
- Single Mode Performance: Premium G.657.A1 fiber (compatible with G.652.D) with OS2 9/125μm specifications for superior signal integrity.
- OFNP Flame Rating: Plenum-rated double jacket meets strict fire safety codes for indoor duct and plenum space installation.
- Durable Build: Double-jacket construction with a 9.0mm cable outer diameter and 3.0mm breakout diameter for added protection.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Male to MPO Male |
| Polarity | Type 2 |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Count | 2x8F to 2x8F (16 Fibers) |
| Polish Type | APC to APC |
| Min. Bend Radius | 10mm |
| Fiber Mode | OS2 9/125μm |
| Cable Jacket/Flame Rating | LSZH / OFNP |
| Wavelength | 1310 / 1550 nm |
| Return Loss | ≥60dB |
| Insertion Loss | ≤0.35dB |
| Attenuation at 1310 nm | ≤0.35 dB/km |
| Attenuation at 1550 nm | ≤0.21 dB/km |
| Breakout OD | 3.0mm |
| Cable OD | 9.0mm |
| Breakout Length | 0.8m (80cm) |
| Tensile Strength | 200/660N (Long/Short Term) |
| Operating Temperature | LSZH: -20 to 70°C | OFNP: 0 to 70°C |
| Connector Durability | ≥ 500 - 1000 times |
| Cable Structure | Double Jacket |
Tags: MPO Cable, Trunk Cable, OS2 Single Mode, 16 Fibers, MPO Shuffle Cable, High Density Cabling
