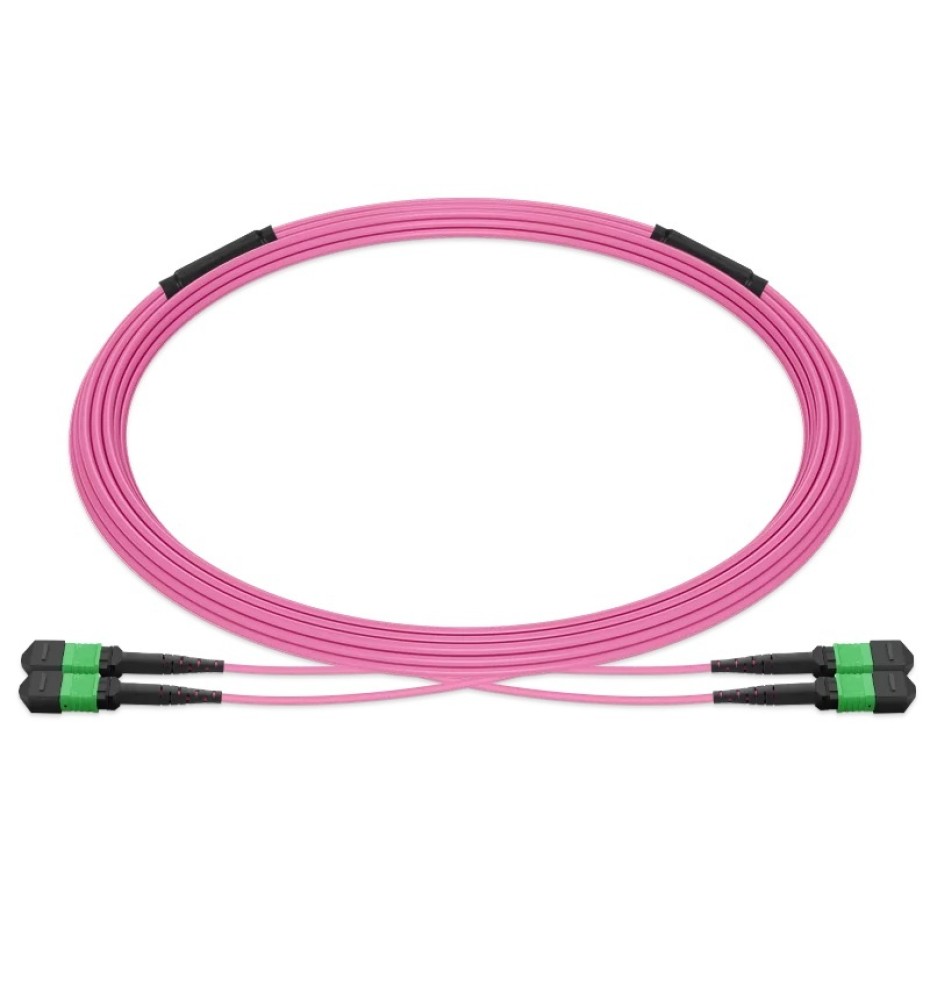

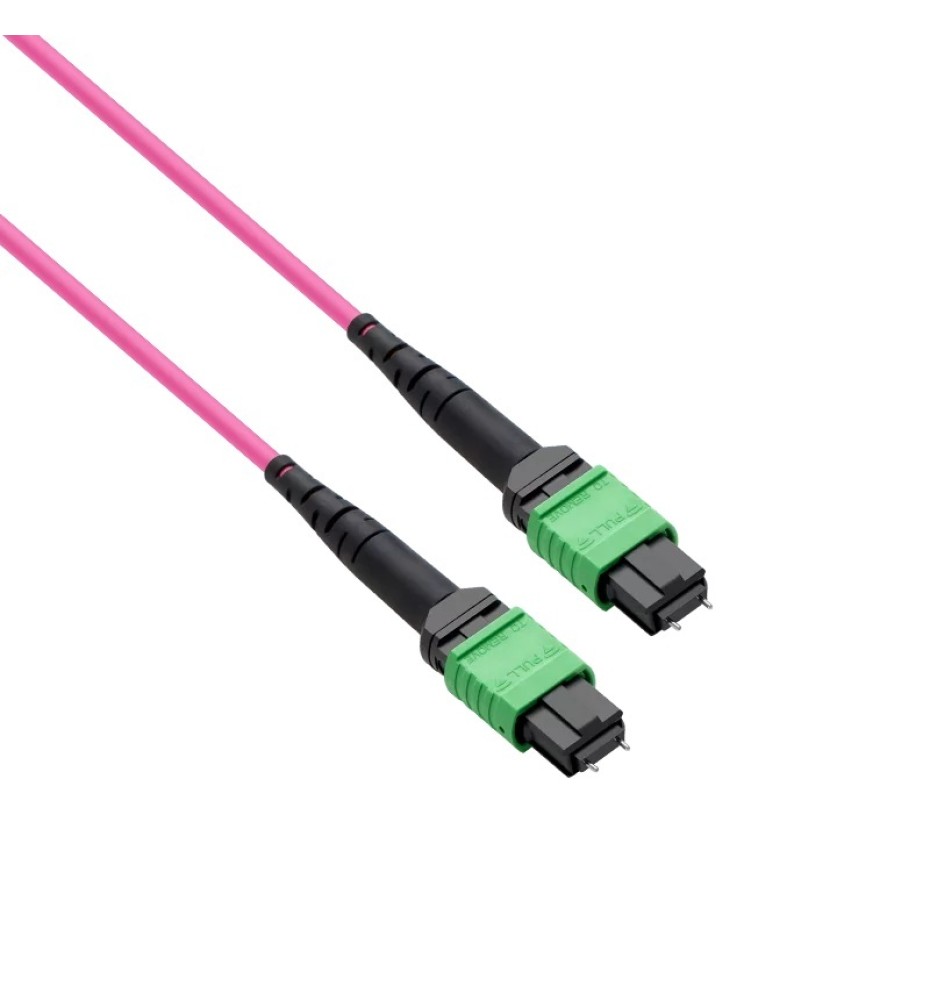

Pre-terminated MPO 2x2 Shuffle Trunk Cable, 16 Fibers, 2xMPO-8 APC Male to 2xMPO-8 APC Male, Multimode (OM4), Type 2, OFNP, 0.35dB Max, Breakout 80cm, Magenta
- Product Code: M4MPOA16M2
- Availability: In Stock
Fiber Type: 16F Male OM4 Shuffle
The Pre-terminated MPO 2x2 Shuffle Trunk Cable is designed for high-density data center applications and advanced fiber networks. Featuring 16 fibers (2xMPO-8 APC Male to 2xMPO-8 APC Male) with OM4 multimode performance, this cable ensures low insertion loss and high signal reliability. Built with an OFNP plenum-rated double jacket and a distinctive magenta color, it offers exceptional durability, flexibility, and easy identification in structured cabling systems.
KEY FEATURES
- High Density Design: Pre-terminated 2x2 shuffle configuration for simplified trunk routing.
- Premium Performance: Low insertion loss (≤0.35dB Max) and bend-insensitive OM4 50/125μm fiber.
- Flame Rating: OFNP (Plenum) double jacket suitable for elevated indoor safety requirements.
- Robust Structure: 9.0mm cable outer diameter with 3.0mm breakout outer diameter for improved physical strength.
TECHNICAL SPECIFICATIONS

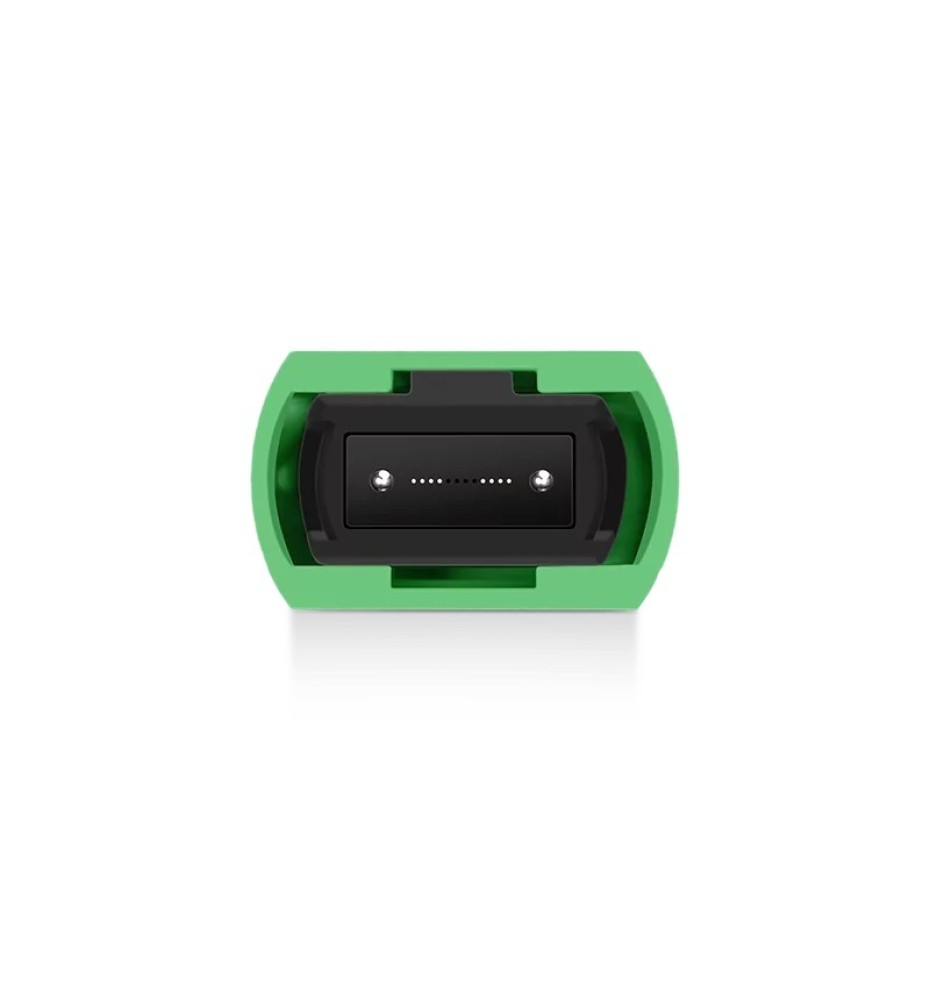

| Connector Type | MPO Male to MPO Male |
| Polarity | Type 2 |
| Fiber Grade | Bend Insensitive |
| Fiber Count | 2x8F to 2x8F (16 Fibers) |
| Polish Type | APC to APC |
| Min. Bend Radius | 7.5mm |
| Fiber Mode | OM4 50/125μm |
| Cable Jacket/Flame Rating | LSZH / OFNP |
| Wavelength | 850 / 1300 nm |
| Return Loss | ≥35dB |
| Insertion Loss | ≤0.35dB |
| Attenuation at 850 nm | ≤2.3 dB/km |
| Attenuation at 1300 nm | ≤1.0 dB/km |
| Breakout OD | 3.0mm |
| Cable OD | 9.0mm |
| Breakout Length | 0.8m (80cm) |
| Tensile Strength | 200/660N (Long/Short Term) |
| Operating Temperature | LSZH: -20 to 70°C | OFNP: 0 to 70°C |
| Connector Durability | ≥ 500 - 1000 times |
| Cable Structure | Double Jacket |
