Fiber Type: 32 Fibers Male OM4 Shuffle

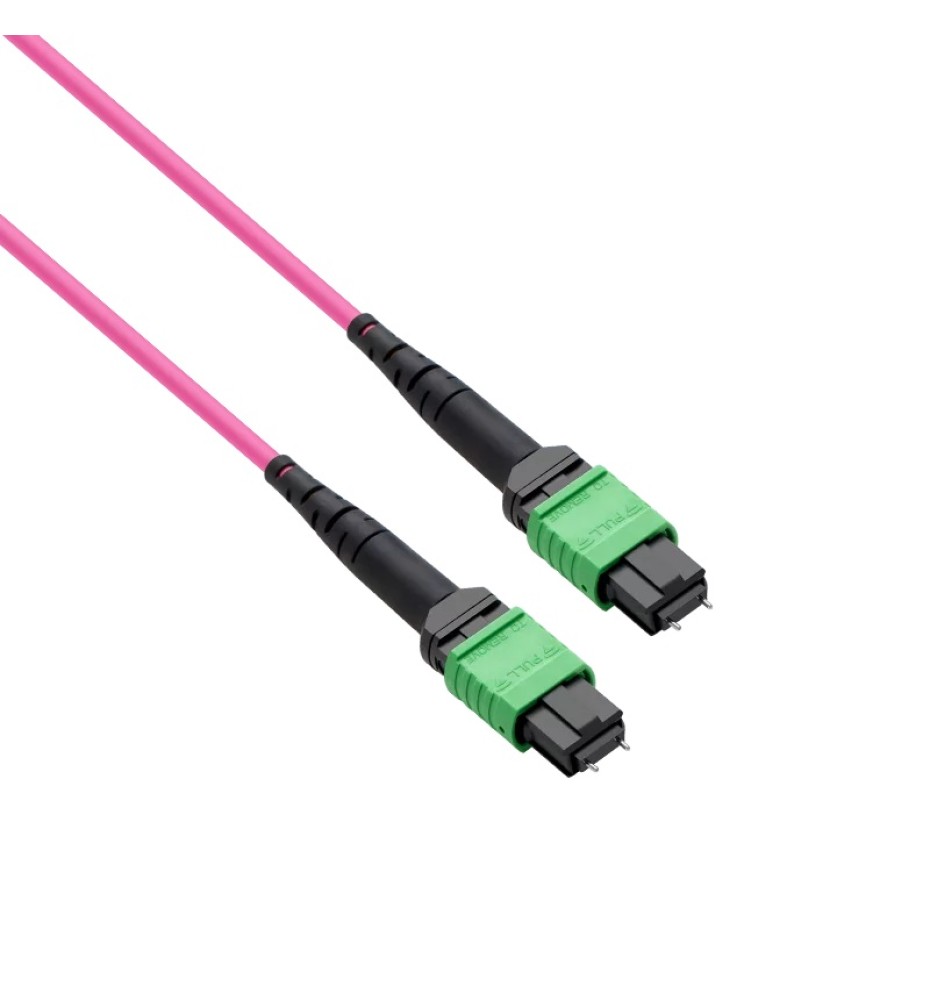

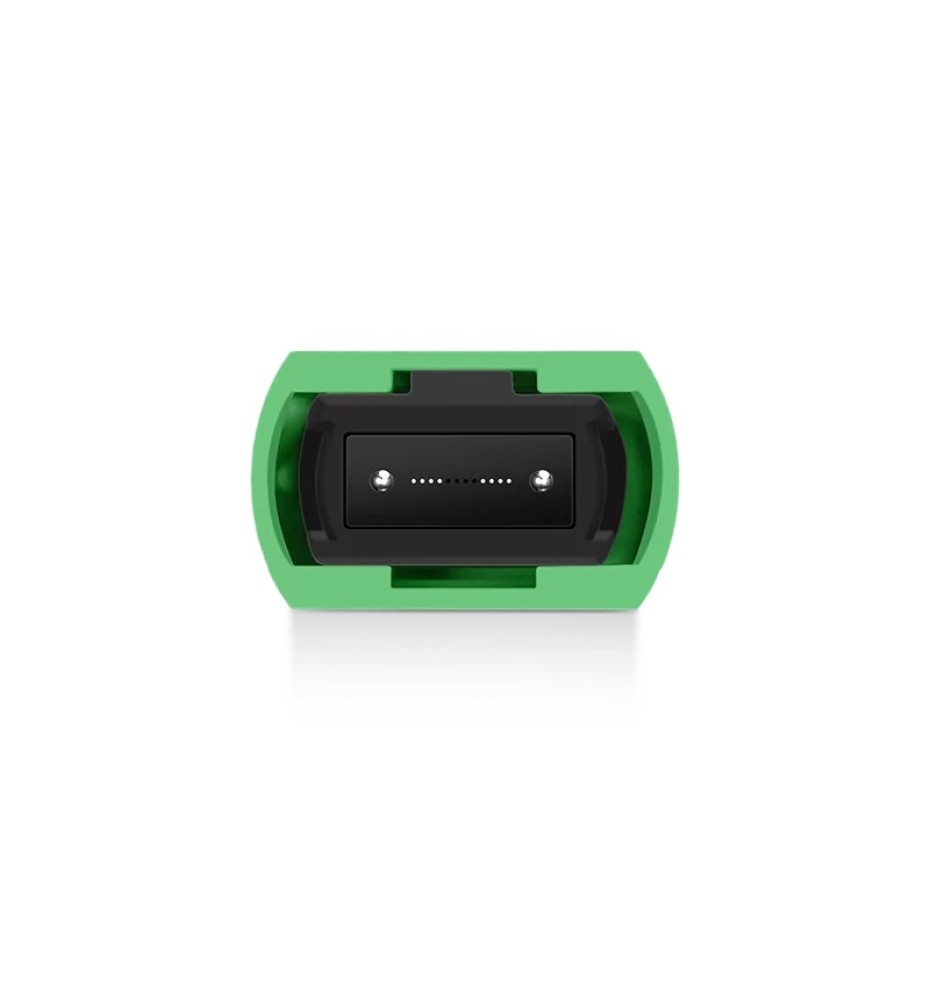

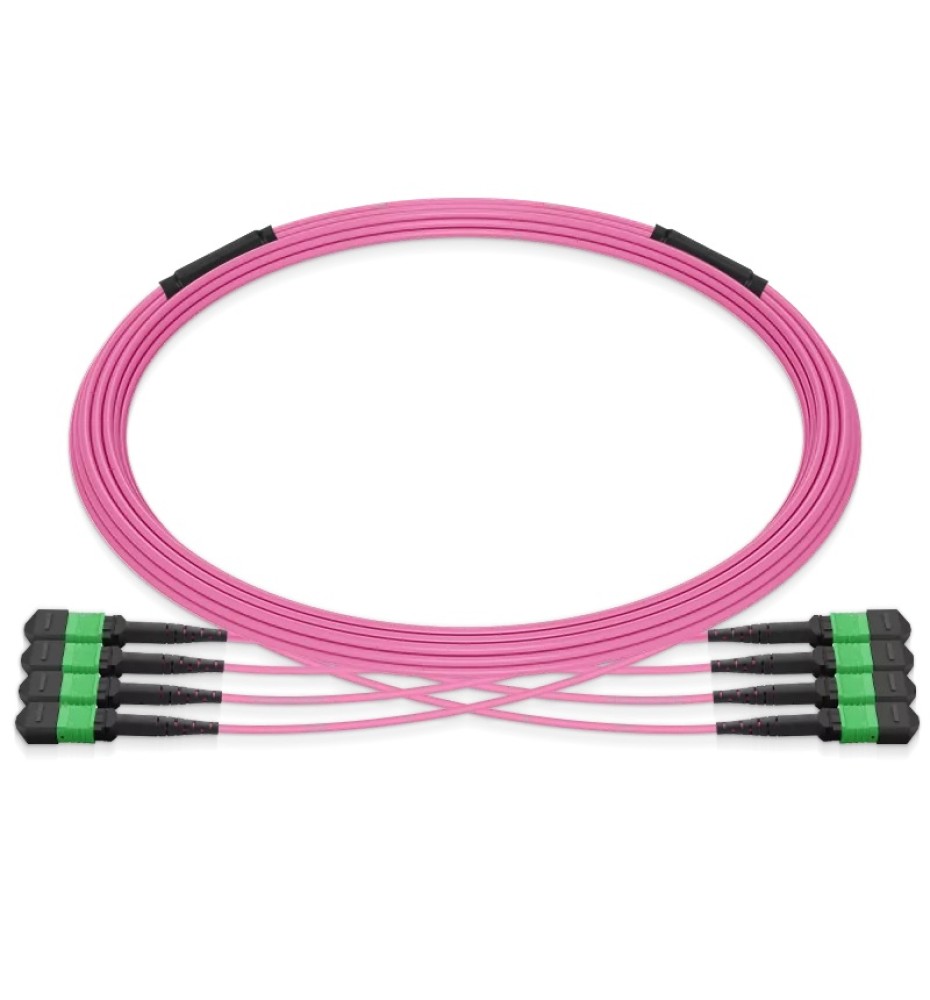

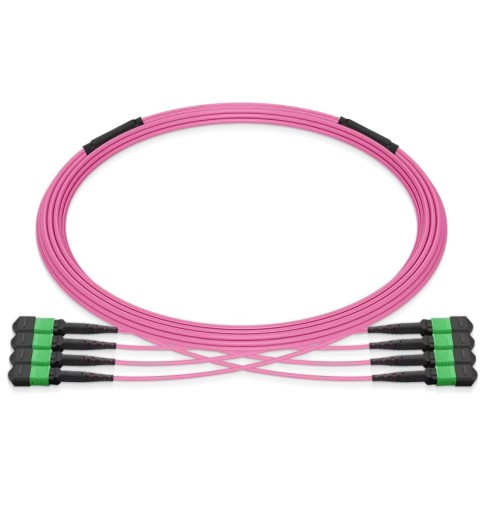

The Pre-terminated MPO 4x4 Shuffle Trunk Cable is designed for high-density, high-performance data center networks. Equipped with 32 fibers in a 4xMPO-8 APC (Male) to 4xMPO-8 APC (Male) arrangement, this cable utilizes bend-insensitive OM4 50/125μm multimode fiber to ensure efficient optical routing and minimal signal loss. Built with Type 4 polarity and a durable double-jacket LSZH outer sheath, it offers reliable transmission with a low maximum insertion loss of 0.35dB.

KEY FEATURES

• High-Density Routing: 32-fiber capacity engineered specifically for efficient 4x4 shuffle application setups.
• Low Loss Performance: Maximum insertion loss of 0.35dB and return loss of ≥35dB for stable data integrity.
• Bend-Insensitive OM4 Fiber: Minimum bend radius of 7.5mm for easy installation in tight rack spaces.
• LSZH Safety Jacket: Low Smoke Zero Halogen double-jacket construction minimizes toxic emissions during combustion.
• Factory Pre-terminated: Plug-and-play assembly ensures consistent quality and speeds up network deployment.

TECHNICAL SPECIFICATIONS
