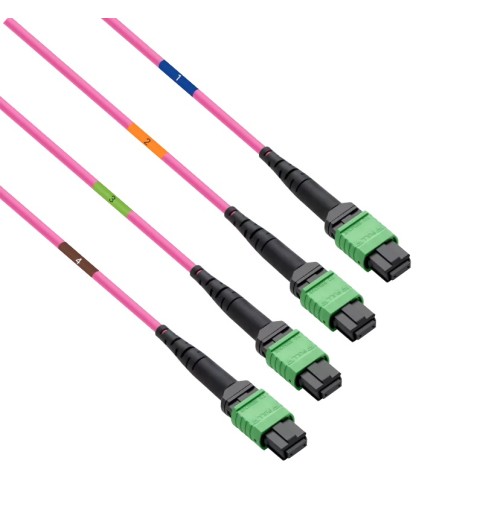

MPO 4x4 Shuffle Breakout Cable, 32 Fibers, 4xMPO-8 APC (Female) to 4xMPO-8 APC (Female), Multimode (OM4), Type 4, OFNP, 3.0mm, Max IL ≤ 0.35dB, Magenta
- Product Code: M4MPOA4x8F4
- Availability: In Stock
Fiber Type: 4x8 Fibers Male OM4 Shuffle
This pre-terminated 32 fiber MPO 4x4 shuffle breakout cable is engineered for high-density optical routing and direct switch-to-switch mesh network topologies in enterprise data centers. Featuring 4 MPO-8 APC female (unpinned) connectors on each end, this cable assembly simplifies complex channel mapping without requiring external shuffle patch panels.
Constructed with an OFNP (Plenum) flame-rated jacket, this assembly complies with strict building fire safety codes for installation in plenum spaces and environmental air ducts. Built with bend-insensitive OM4 50/125μm multimode fiber, it features a tight 7.5mm minimum bend radius, a slim 3.0mm single jacket construction in magenta, Type 4 polarity, and a low optical insertion loss of maximum 0.35dB for reliable high-bandwidth performance.
KEY FEATURES
- High-density 32-fiber core utilizing a 4x4 shuffle layout with 4 x MPO-8 APC female (unpinned) connectors on both ends.
- OFNP (Plenum) flame-rated jacket compliant with strict building code fire safety standards for plenum spaces.
- OM4 50/125μm multimode bend-insensitive fiber for high-bandwidth optical transmission.
- Slim 3.0mm cable diameter with single jacket construction for lightweight airflow management.
- Ultra-tight 7.5mm minimum bend radius for flexible cable management in congested rack environments.
- Type 4 polarity scheme engineered for direct optical channel distribution.
- Low optical insertion loss (≤0.35dB) combined with high return loss (≥35dB) for signal stability.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Female to MPO Female (4 x MPO-8 Unpinned) |
| Polish Type | APC to APC |
| Polarity | Type 4 |
| Fiber Mode | OM4 50/125μm Multimode |
| Fiber Grade | Bend Insensitive |
| Fiber Count | 32 Fibers (4 x 8F to 4 x 8F) |
| Wavelength | 850 nm / 1300 nm |
| Insertion Loss | ≤0.35 dB Max |
| Return Loss | ≥35 dB |
| Attenuation | ≤2.3 dB/km at 850 nm | ≤1.0 dB/km at 1300 nm |
| Cable Jacket / Flame Rating | OFNP / LSZH (Single Jacket, Magenta) |
| Cable Diameter | 3.0 mm |
| Min. Bend Radius | 7.5 mm |
| Tensile Strength | 80 N (Long Term) / 150 N (Short Term) |
| Connector Durability | ≥500 - 1000 Mating Cycles |
| Operating Temperature | OFNP: 0°C to 70°C | LSZH: -20°C to 70°C |
