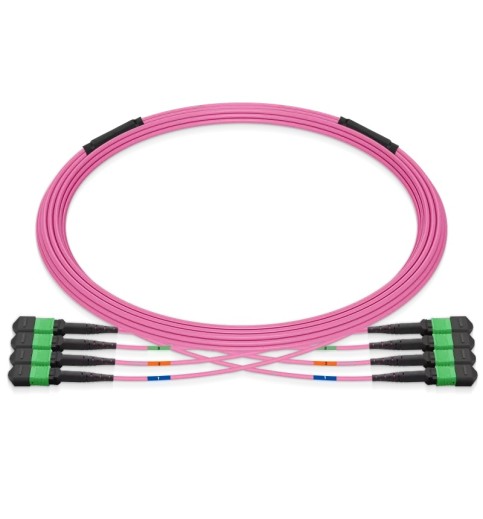

Pre-terminated MPO 4x4 Shuffle Trunk Cable, 32 Fibers, 4xMPO-8 APC (Female) to 4xMPO-8 APC (Female), Multimode (OM4), Type 4, LSZH, 0.35dB Max, Breakout 5m, Magenta
- Product Code: M4MPOA32F4
- Availability: In Stock
Fiber Type: 32 Fibers Female OM4 Shuffle
This pre-terminated 32 fiber MPO 4x4 shuffle trunk cable is engineered for high-density optical routing and structured mesh network architectures in modern enterprise data centers. Featuring 4 MPO-8 APC female (unpinned) connectors on each end, this cable assembly facilitates direct channel distribution across high-speed switch topologies without requiring extra external shuffle panels.
Constructed with bend-insensitive OM4 50/125μm multimode fiber, it offers an ultra-tight 7.5mm minimum bend radius for efficient cable routing in congested rack spaces. Designed with Type 4 polarity, a low optical insertion loss of maximum 0.35dB, a 5-meter breakout length, and a protective magenta Low Smoke Zero Halogen (LSZH) jacket, this cable assembly provides reliable transmission performance and physical durability for optimized optical connections.
KEY FEATURES

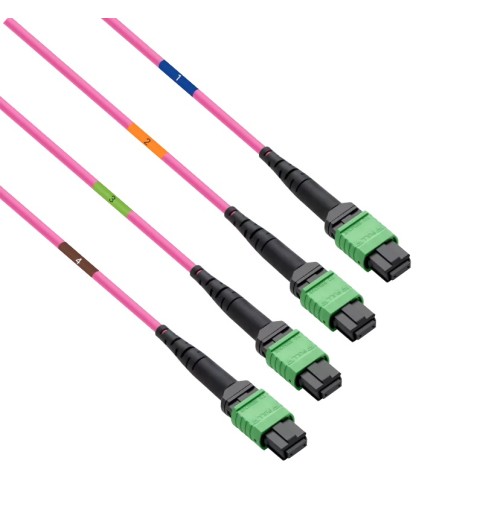

- High-density 32-fiber core utilizing a 4x4 shuffle layout with 4 x MPO-8 APC female (unpinned) connectors on both ends.
- OM4 50/125μm multimode bend-insensitive fiber for high-bandwidth optical transmission.
- Ultra-tight 7.5mm minimum bend radius for flexible cable management in restricted cabinet spaces.
- Type 4 polarity scheme engineered for direct switch-to-switch channel mapping.
- Low optical insertion loss (≤0.35dB) and return loss (≥35dB) for signal stability.
- Single jacket construction (3.5mm OD) with an extended 5-meter breakout length (3.0mm OD breakout legs) in high-visibility magenta.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Female to MPO Female (4 x MPO-8 Unpinned) |
| Polish Type | APC to APC |
| Polarity | Type 4 |
| Fiber Mode | OM4 50/125μm Multimode |
| Fiber Grade | Bend Insensitive |
| Fiber Count | 32 Fibers (4 x 8F to 4 x 8F) |
| Wavelength | 850 nm / 1300 nm |
| Insertion Loss | ≤0.35 dB Max |
| Return Loss | ≥35 dB |
| Attenuation | ≤2.3 dB/km at 850 nm | ≤1.0 dB/km at 1310 nm |
| Cable Jacket / Flame Rating | LSZH / OFNP (Single Jacket, Magenta) |
| Cable Outside Diameter (OD) | 3.5 mm |
| Breakout Outside Diameter (OD) | 3.0 mm |
| Breakout Length | 5.0 m |
| Min. Bend Radius | 7.5 mm |
| Tensile Strength | 200 N (Long Term) / 660 N (Short Term) |
| Connector Durability | ≥500 - 1000 Mating Cycles |
| Operating Temperature | LSZH: -20°C to 70°C | OFNP: 0°C to 70°C |
