Fiber Type: 1U 192 Fibers Single Mode Shuffle Box

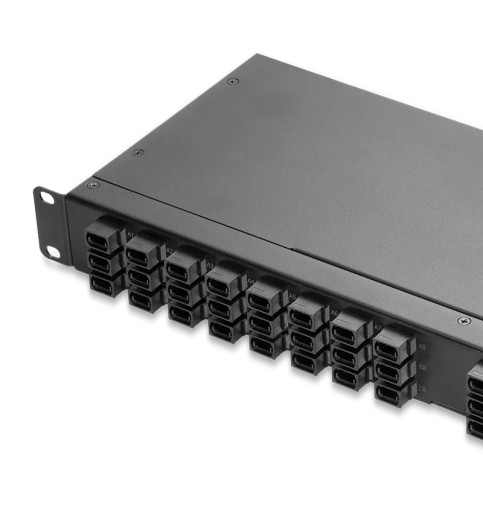

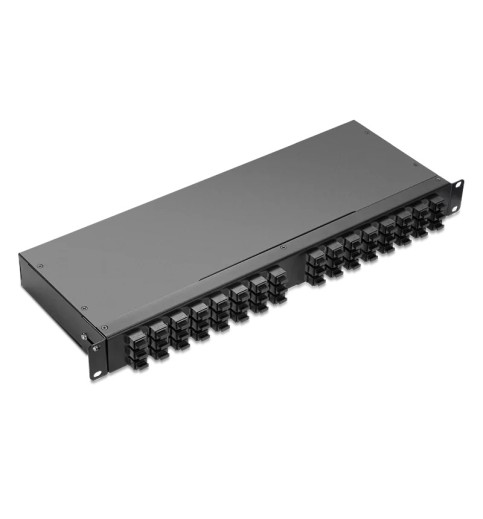

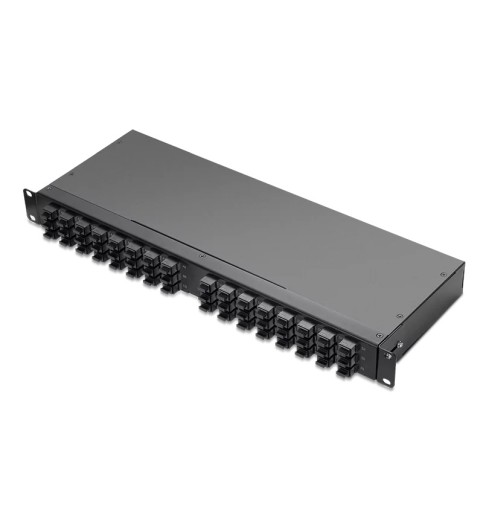

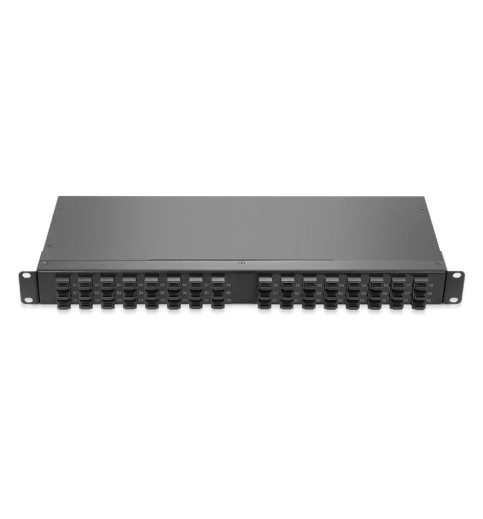

This pre-loaded 1U 192-fiber MPO shuffle box rack mount enclosure is engineered for high-density fiber interconnects and internal optical channel routing in modern enterprise data centers. Constructed from 1.2mm premium cold-rolled steel sheet, this compact 1U unit integrates 48 front MPO ports with MPO APC pinned (male-to-male) adapters to simplify complex network topologies without taking up valuable rack space.

Pre-configured for G.657.A1 bend-insensitive OS2 single mode performance with Type 4 polarity layout and Key Up to Key Down adapter alignment, this shuffle box delivers an ultra-low maximum insertion loss of 0.35dB and high return loss (≥60dB). Designed for standard 19-inch rack mounting, it provides an organized, scalable solution for high-speed optical patch panels and switch-to-switch mesh architectures.

KEY FEATURES

• High-density 1U rack mount design housing 192 fibers across 48 front MPO ports.
• Loaded with MPO APC pinned (male-to-male) adapters featuring Key Up to Key Down orientation.
• Optimized for G.657.A1 bend-insensitive OS2 single mode optical networks.
• Type 4 polarity scheme designed for direct channel mapping and structured mesh connectivity.
• Ultra-low optical insertion loss (≤0.35dB) and high return loss (≥60dB) for high-bandwidth signal integrity.
• Durable chassis built from 1.2mm cold-rolled steel sheet for long-term physical protection.

TECHNICAL SPECIFICATIONS
