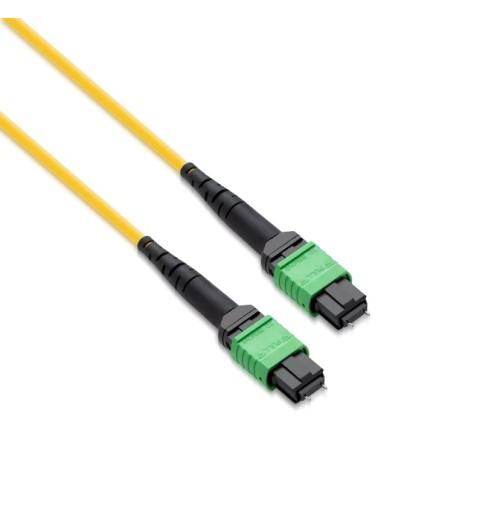

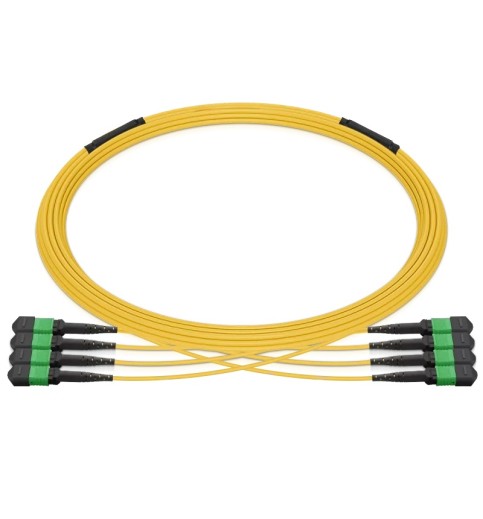

Pre-terminated MPO 4x4 Shuffle Trunk Cable, 32 Fibers, 4 x MPO-8 APC (Male) to 4 x MPO-8 APC (Male), Single Mode (OS2), Type 4, OFNP, 0.35dB Max, Breakout 80cm, Yellow
- Product Code: S2MPOA32M4
- Availability: In Stock
Fiber Type: 32 Fibers Male OS2 Shuffle
This pre-terminated 32 fiber MPO 4x4 shuffle trunk cable is engineered for high-density optical interconnections and structured mesh network routing in modern enterprise data centers. Featuring 4 MPO-8 APC male (pinned) connectors on each end, this cable assembly directly routes and distributes 8-fiber optical channels without requiring external shuffle patch panels or intermediate frames.
Constructed with an OFNP (Plenum) flame-rated double jacket, this assembly meets strict building safety codes for installation in plenum spaces and environmental air ducts. Engineered with premium G.657.A1 bend-insensitive single mode fiber (fully backward compatible with G.652.D), it offers excellent flexibility with a 10mm minimum bend radius, Type 4 polarity layout, low maximum insertion loss of 0.35dB, and long-term physical protection for high-speed network infrastructure.
KEY FEATURES
- High-density 32-fiber core utilizing a 4x4 shuffle layout with 4 x MPO-8 APC male (pinned) connectors on both ends.
- OFNP (Plenum) flame-rated double jacket compliant with strict building code fire safety standards for plenum spaces.
- G.657.A1 bend-insensitive OS2 single mode fiber, fully compatible with G.652.D.
- Type 4 polarity scheme designed for direct switch-to-switch mesh network architecture.
- Low optical insertion loss (≤0.35dB) combined with high return loss (≥60dB) for high-speed signal integrity.
- Tight 10mm minimum bend radius for flexible cable routing in compact rack spaces.
- Durable double jacket construction (5.0mm OD) with 0.8m (80cm) breakout legs (3.0mm OD) for convenient panel routing.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Male to MPO Male (4 x MPO-8 with Pins) |
| Polish Type | APC to APC |
| Polarity | Type 4 |
| Fiber Mode | OS2 Single Mode |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Count | 32 Fibers (4 x 8F to 4 x 8F) |
| Wavelength | 1310 nm / 1550 nm |
| Insertion Loss | ≤0.35 dB Max |
| Return Loss | ≥60 dB |
| Attenuation | ≤0.35 dB/km at 1310 nm | ≤0.21 dB/km at 1550 nm |
| Cable Jacket / Flame Rating | OFNP / LSZH (Double Jacket, Yellow) |
| Cable Outside Diameter (OD) | 5.0 mm |
| Breakout Outside Diameter (OD) | 3.0 mm |
| Breakout Length | 0.8 m (80 cm) |
| Min. Bend Radius | 10 mm |
| Tensile Strength | 200 N (Long Term) / 660 N (Short Term) |
| Connector Durability | ≥500 - 1000 Mating Cycles |
| Operating Temperature | OFNP: 0°C to 70°C | LSZH: -20°C to 70°C |
