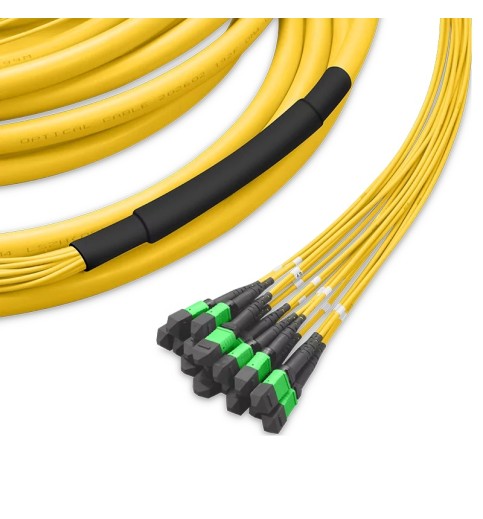

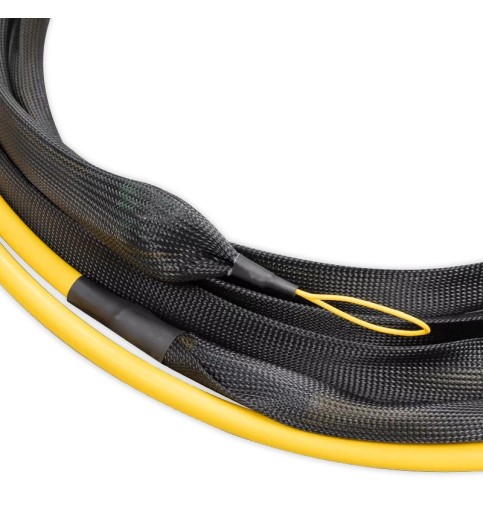

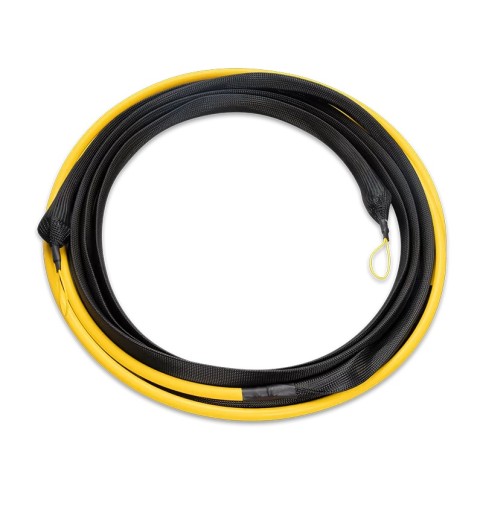

Pre-terminated MPO 2x2 Shuffle Trunk Cable, 128 Fibers, 16xMPO-8 APC (Male) to 16xMPO-8 APC (Male), Single Mode (OS2), Type 2, LSZH, 0.35dB Max, Breakout 80cm, Yellow
- Product Code: S2MPOA128M2
- Availability: In Stock
Fiber Type: 128F Male OS2 Shuffle
This pre-terminated 128 fiber MPO 2x2 shuffle trunk cable is designed for high-density optical patching and optimized mesh routing in modern data centers. Featuring 16 MPO-8 APC male (pinned) connectors on each end, this cable assembly facilitates direct channel distribution across high-speed switch topologies without requiring additional external shuffle panels.
Constructed with premium G.657.A1 bend-insensitive single mode fiber (fully backward compatible with G.652.D), it features a tight 10mm minimum bend radius for routing in restricted cabinet spaces. Designed with Type 2 polarity, low optical insertion loss of maximum 0.35dB, and a durable yellow double jacket with Low Smoke Zero Halogen (LSZH) compliance, this assembly ensures reliable signal transmission and physical protection for high-speed network infrastructure.
KEY FEATURES
- High-density 128-fiber core utilizing a 2x2 shuffle layout with 16 x MPO-8 APC male (pinned) connectors on both ends.
- G.657.A1 bend-insensitive OS2 9/125μm single mode fiber, fully compatible with G.652.D.
- Tight 10mm minimum bend radius for flexible cable management in high-density environments.
- Type 2 polarity layout designed for structured optical channel mapping.
- Low optical insertion loss (≤0.35dB) combined with high return loss (≥60dB) for signal clarity.
- Robust double jacket construction (17.2mm OD) with 0.8m (80cm) breakout legs (3.0mm OD) for convenient panel routing.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Male to MPO Male (16 x MPO-8 with Pins) |
| Polish Type | APC to APC |
| Polarity | Type 2 |
| Fiber Mode | OS2 9/125μm Single Mode |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Count | 128 Fibers (16 x 8F to 16 x 8F) |
| Wavelength | 1310 nm / 1550 nm |
| Insertion Loss | ≤0.35 dB Max |
| Return Loss | ≥60 dB |
| Attenuation | ≤0.35 dB/km at 1310 nm | ≤0.21 dB/km at 1550 nm |
| Cable Jacket / Flame Rating | LSZH / OFNP (Double Jacket, Yellow) |
| Cable Outside Diameter (OD) | 17.2 mm |
| Breakout Outside Diameter (OD) | 3.0 mm |
| Breakout Length | 0.8 m (80 cm) |
| Min. Bend Radius | 10 mm |
| Tensile Strength | 400 N (Long Term) / 1335 N (Short Term) |
| Connector Durability | ≥500 - 1000 Mating Cycles |
| Operating Temperature | LSZH: -20°C to 70°C | OFNP: 0°C to 70°C |
