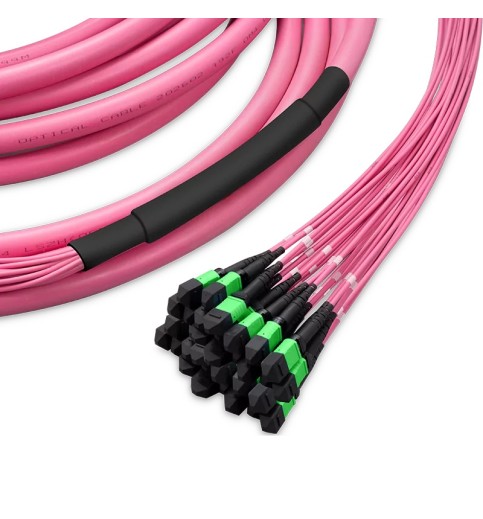

Pre-terminated MPO 4x4 Shuffle Trunk Cable, 256 Fibers, 32xMPO-8 APC (Male) to 32xMPO-8 APC (Male), Multimode (OM4), Type 4, LSZH, 0.35dB Max, Breakout 80cm, Magenta
- Product Code: M4MPOA256M4
- Availability: In Stock
Fiber Type: 256F Male OM4 Shuffle
This pre-terminated 256 fiber MPO 4x4 shuffle trunk cable is built for ultra-high-density optical interconnections and complex mesh network topologies in modern enterprise data centers. Featuring 32 MPO-8 APC male (pinned) connectors on each end, this cable assembly directly routes and distributes 8-fiber optical channels without requiring external shuffle patch panels or intermediate frames.
Engineered with premium bend-insensitive OM4 50/125μm multimode fiber, it offers exceptional routing flexibility with a tight 7.5mm minimum bend radius. Featuring a Type 4 polarity layout, low maximum insertion loss of 0.35dB, and a durable double jacket with Low Smoke Zero Halogen (LSZH) compliance, this trunk cable delivers maximum physical protection and signal integrity for high-bandwidth optical networks.
KEY FEATURES
- Ultra high-density 256-fiber architecture utilizing a 4x4 shuffle layout with 32 x MPO-8 APC male (pinned) connectors on both ends.
- OM4 50/125μm multimode fiber performance optimized for 850nm and 1300nm optical links.
- Bend-insensitive fiber design with a tight 7.5mm minimum bend radius for flexible cabinet routing.
- Type 4 polarity scheme optimized for direct switch-to-switch mesh network architecture.
- Low optical insertion loss (≤0.35dB) combined with high return loss (≥35dB) for maximum transmission performance.

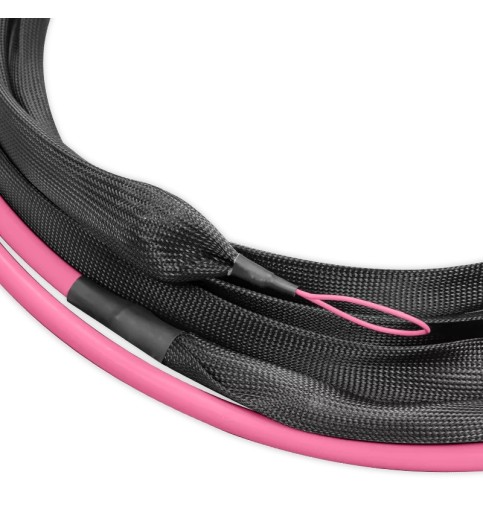

- Heavy-duty double jacket construction (23.1mm OD) with 0.8m (80cm) breakout legs (3.0mm OD) for convenient panel management.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Male to MPO Male (32 x MPO-8 with Pins) |
| Polish Type | APC to APC |
| Polarity | Type 4 |
| Fiber Mode | OM4 50/125μm Multimode |
| Fiber Grade | Bend Insensitive |
| Fiber Count | 256 Fibers (32 x 8F to 32 x 8F) |
| Wavelength | 850 nm / 1300 nm |
| Insertion Loss | ≤0.35 dB Max |
| Return Loss | ≥35 dB |
| Attenuation | ≤2.3 dB/km at 850 nm | ≤1.0 dB/km at 1300 nm |
| Cable Jacket / Flame Rating | LSZH / OFNP (Double Jacket, Magenta) |
| Cable Outside Diameter (OD) | 23.1 mm |
| Breakout Outside Diameter (OD) | 3.0 mm |
| Breakout Length | 0.8 m (80 cm) |
| Min. Bend Radius | 7.5 mm |
| Tensile Strength | 400 N (Long Term) / 1335 N (Short Term) |
| Connector Durability | ≥500 - 1000 Mating Cycles |
| Operating Temperature | LSZH: -20°C to 70°C | OFNP: 0°C to 70°C |
