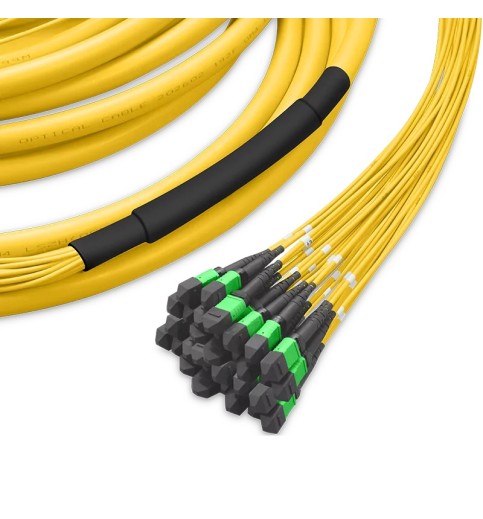

Pre-terminated MPO 4x4 Shuffle Trunk Cable, 256 Fibers, 32xMPO-8 APC (Male) to 32xMPO-8 APC (Male), Single Mode (OS2), Type 4, OFNP, 0.35dB Max, Breakout 80cm, Yellow
- Product Code: S2MPOA256M4
- Availability: In Stock
Fiber Type: 256F Male OS2 Shuffle
This pre-terminated 256 fiber MPO 4x4 shuffle trunk cable is built for ultra-high-density optical interconnections and complex mesh network topologies in modern enterprise data centers. Featuring 32 MPO-8 APC male (pinned) connectors on each end, this cable assembly directly routes and distributes 8-fiber optical channels without requiring external shuffle patch panels or intermediate frames.
Constructed with an OFNP (Plenum) flame-rated double jacket, this cable meets strict building safety codes for installation in plenum spaces and environmental air ducts. Engineered with premium G.657.A1 bend-insensitive single mode fiber (fully backward compatible with G.652.D), it offers exceptional flexibility with a 10mm minimum bend radius, Type 4 polarity layout, low maximum insertion loss of 0.35dB, and maximum physical protection for high-bandwidth optical networks.
KEY FEATURES
- Ultra high-density 256-fiber architecture utilizing a 4x4 shuffle layout with 32 x MPO-8 APC male (pinned) connectors on both ends.
- OFNP (Plenum) flame-rated double jacket compliant with strict building code fire safety standards for plenum spaces.
- G.657.A1 bend-insensitive OS2 9/125μm single mode fiber, fully compatible with G.652.D.
- Type 4 polarity scheme optimized for direct switch-to-switch mesh network architecture.
- Low optical insertion loss (≤0.35dB) and high return loss (≥60dB) for high-speed signal integrity.

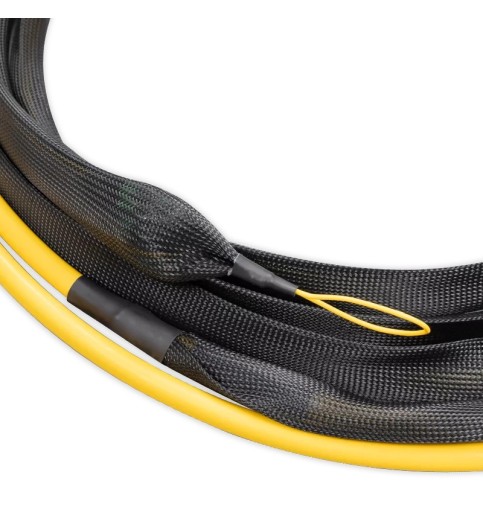

- Heavy-duty double jacket construction (23.1mm OD) with 0.8m (80cm) breakout legs (3.0mm OD) for organized panel management.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Male to MPO Male (32 x MPO-8 with Pins) |
| Polish Type | APC to APC |
| Polarity | Type 4 |
| Fiber Mode | OS2 9/125μm Single Mode |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Count | 256 Fibers (32 x 8F to 32 x 8F) |
| Wavelength | 1310 nm / 1550 nm |
| Insertion Loss | ≤0.35 dB Max |
| Return Loss | ≥60 dB |
| Attenuation | ≤0.35 dB/km at 1310 nm | ≤0.21 dB/km at 1550 nm |
| Cable Jacket / Flame Rating | OFNP / LSZH (Double Jacket, Yellow) |
| Cable Outside Diameter (OD) | 23.1 mm |
| Breakout Outside Diameter (OD) | 3.0 mm |
| Breakout Length | 0.8 m (80 cm) |
| Min. Bend Radius | 10 mm |
| Tensile Strength | 400 N (Long Term) / 1335 N (Short Term) |
| Connector Durability | ≥500 - 1000 Mating Cycles |
| Operating Temperature | OFNP: 0°C to 70°C | LSZH: -20°C to 70°C |
