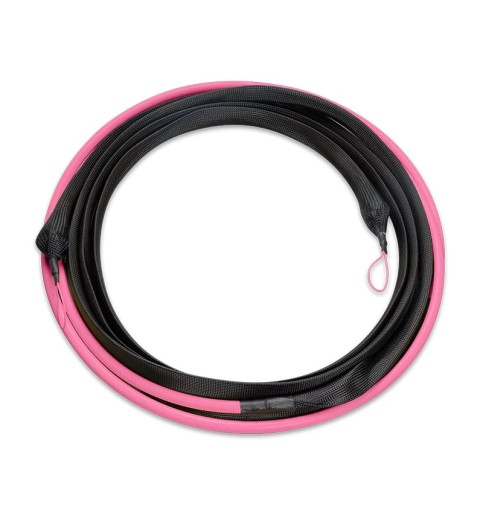

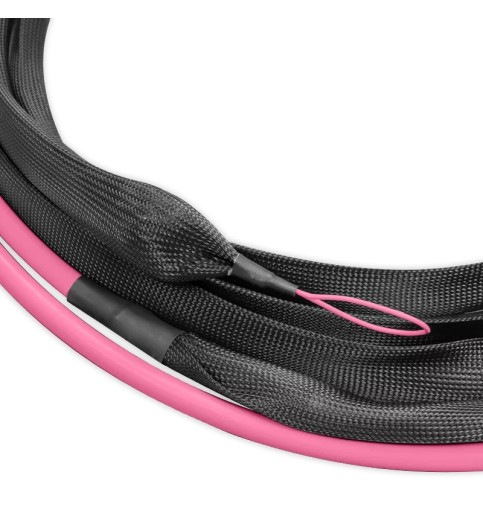

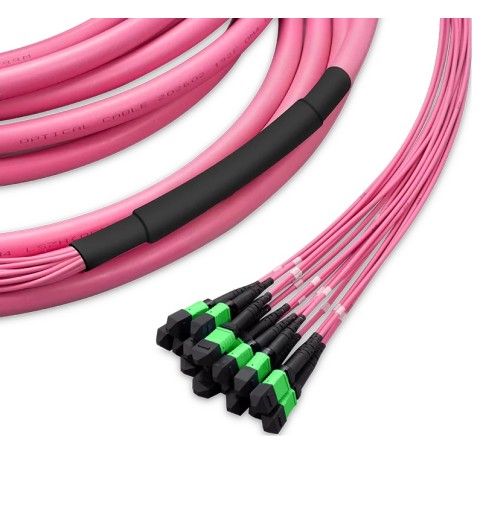

Pre-terminated MPO 2x2 Shuffle Trunk Cable, 128 Fibers, 16xMPO-8 APC (Male) to 16xMPO-8 APC (Male), Multimode (OM4), Type 2, OFNP, 0.35dB Max, Breakout 80cm, Magenta
- Product Code: M4MPOA128M2
- Availability: In Stock
Fiber Type: 128F Male OM4 Shuffle
This pre-terminated 128 fiber MPO 2x2 shuffle trunk cable is designed for ultra-high-density optical interconnections and streamlined mesh network architectures in modern enterprise data centers. Featuring 16 MPO-8 APC male (pinned) connectors on each end, this cable assembly delivers direct channel distribution across switch fabrics without needing external shuffle panels or complex patching frames.
Built with an OFNP (Plenum) flame-rated double jacket, this assembly complies with strict building fire safety codes for routing in plenum spaces and environmental air ducts. It incorporates premium bend-insensitive OM4 50/125μm multimode fiber with a tight 7.5mm minimum bend radius, Type 2 polarity, low maximum insertion loss of 0.35dB, and 0.8m breakout legs for dependable, long-term optical network performance.
KEY FEATURES
- High-density 128-fiber core utilizing a 2x2 shuffle layout with 16 x MPO-8 APC male (pinned) connectors on both ends.
- OFNP (Plenum) flame-rated double jacket designed for plenum spaces and strict building safety standards.
- OM4 50/125μm multimode fiber optimized for 850nm and 1300nm optical links.
- Bend-insensitive fiber construction with a tight 7.5mm minimum bend radius for flexible cabinet routing.
- Type 2 polarity architecture for structured channel alignment across high-speed optical trunks.
- Low insertion loss (≤0.35dB) combined with high return loss (≥35dB) for maximum transmission stability.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Male to MPO Male (16 x MPO-8 with Pins) |
| Polish Type | APC to APC |
| Polarity | Type 2 |
| Fiber Mode | OM4 50/125μm Multimode |
| Fiber Grade | Bend Insensitive |
| Fiber Count | 128 Fibers (16 x 8F to 16 x 8F) |
| Wavelength | 850 nm / 1300 nm |
| Insertion Loss | ≤0.35 dB Max |
| Return Loss | ≥35 dB |
| Attenuation | ≤2.3 dB/km at 850 nm | ≤1.0 dB/km at 1300 nm |
| Cable Jacket / Flame Rating | OFNP / LSZH (Double Jacket, Magenta) |
| Cable Outside Diameter (OD) | 17.2 mm |
| Breakout Outside Diameter (OD) | 3.0 mm |
| Breakout Length | 0.8 m (80 cm) |
| Min. Bend Radius | 7.5 mm |
| Tensile Strength | 400 N (Long Term) / 1335 N (Short Term) |
| Connector Durability | ≥500 - 1000 Mating Cycles |
| Operating Temperature | OFNP: 0°C to 70°C | LSZH: -20°C to 70°C |
