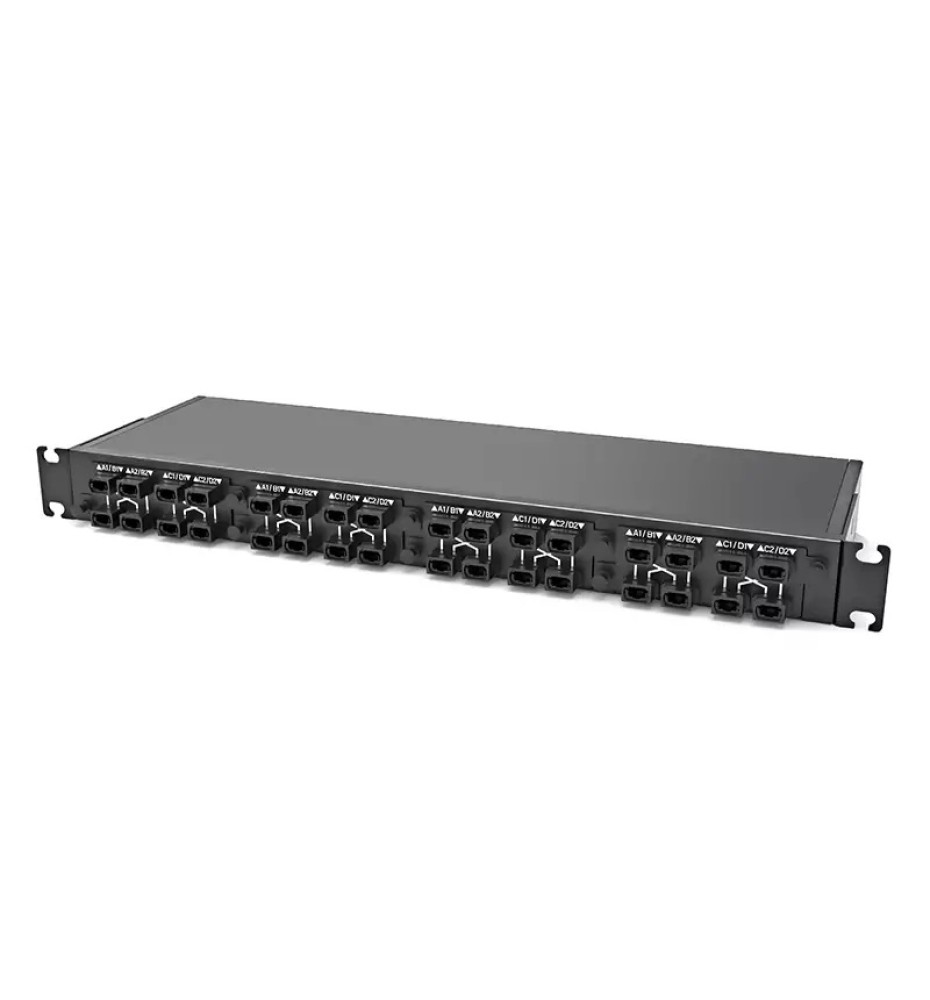

Cable Type: 1U 128 Fibers Single Mode Shuffle Box

This 1U rack mount shuffle box enclosure is engineered to optimize high-density optical routing and simplify multi-fiber management in modern data centers. Pre-loaded with 32 front MPO ports featuring male-to-male (pinned) APC adapters, this panel provides efficient internal channel shuffling for up to 128 fibers on OS2 single mode infrastructure within a standard rack unit.

Constructed from robust 1.2mm premium cold rolled steel, this enclosure fits standard 19-inch equipment racks. It incorporates G.657.A1 bend-insensitive single mode fiber and supports a Type 2 polarity configuration with Key Up to Key Down adapter alignment, delivering low insertion loss (≤0.35dB) and high return loss (≥60dB) for critical optical interconnects.

KEY FEATURES

• Standard 1U 19-inch rack mount form factor for high-density network cabinet deployment.
• Pre-loaded with 32 MPO APC male-to-male (pinned) adapters supporting up to 128 fibers (32 x 8F).
• OS2 single mode capability featuring G.657.A1 bend-insensitive optical performance.
• Type 2 polarity architecture with Key Up to Key Down adapter alignment for direct routing.
• Low optical insertion loss (≤0.35dB) and high return loss (≥60dB) for stable transmission integrity.
• Durable 1.2mm cold rolled steel sheet construction providing a sturdy structural frame.

TECHNICAL SPECIFICATIONS
