Cable Type: 0.5U 128 Fibers Single Mode Shuffle Box

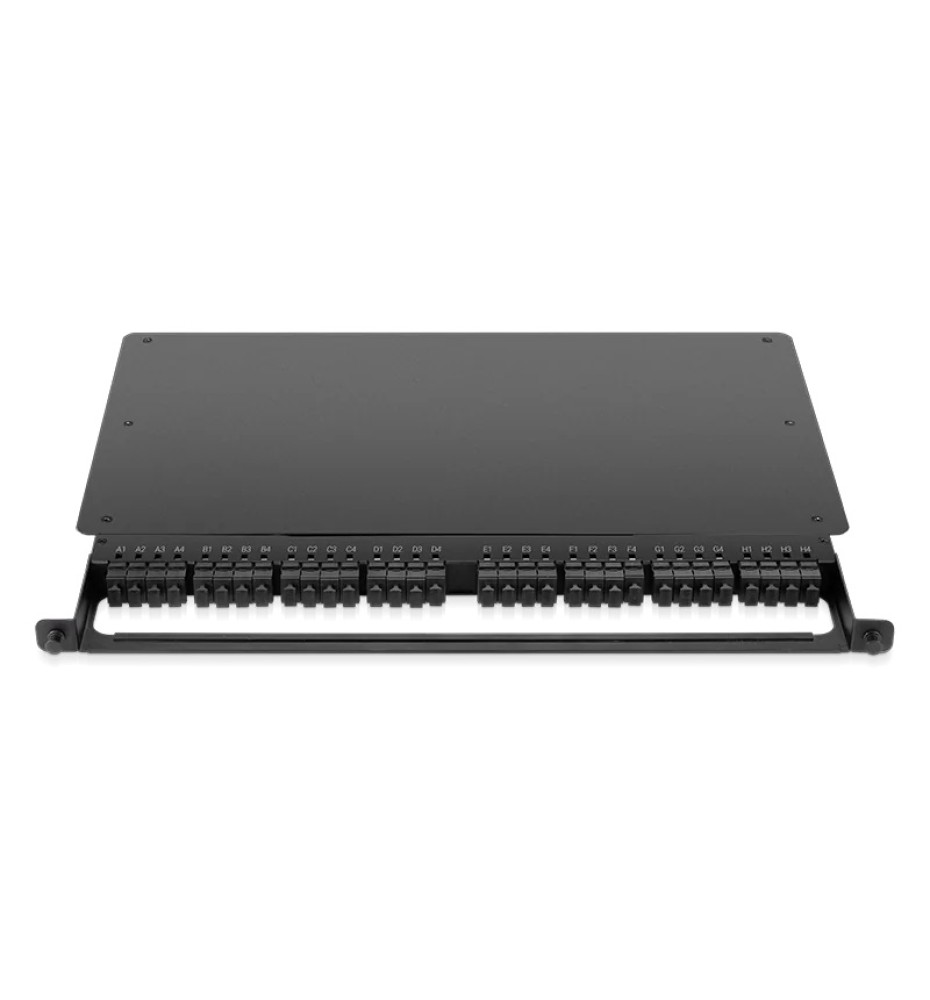

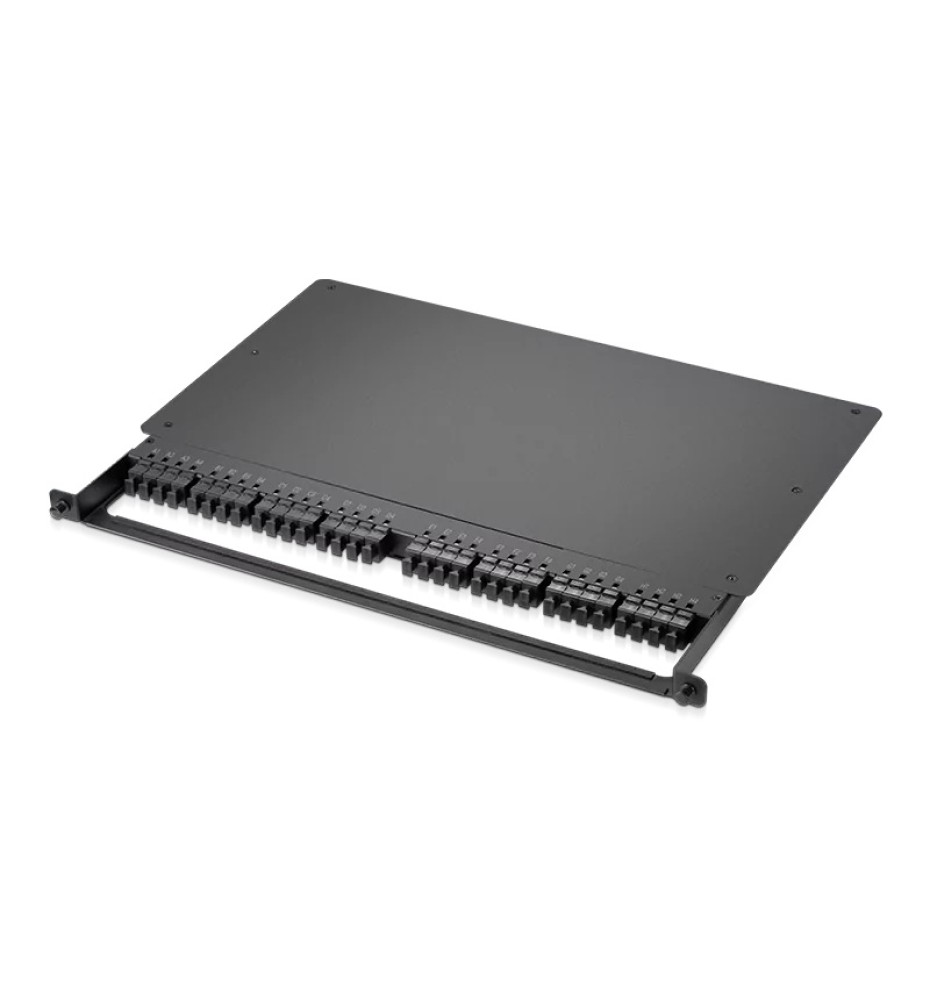

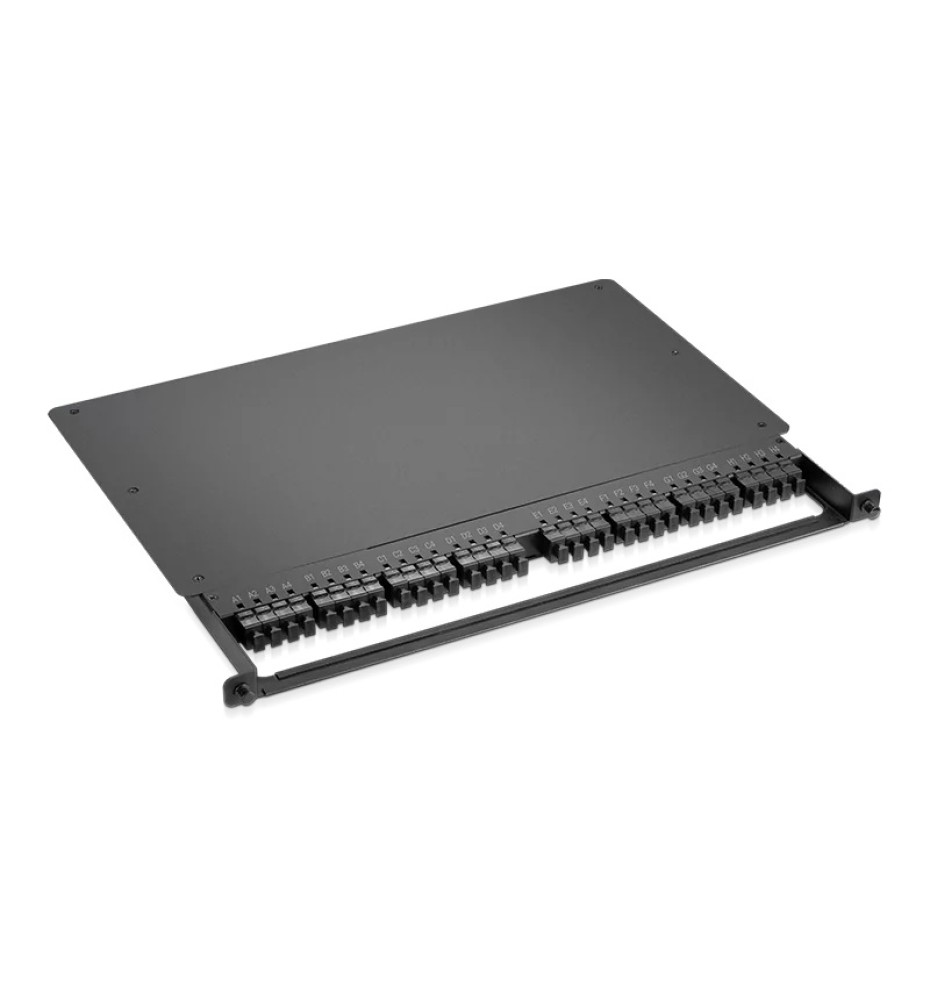

This ultra-compact 0.5U rack mount shuffle box enclosure is designed to optimize rack space and simplify ultra-high-density optical routing in modern data centers. Pre-loaded with 32 front MPO ports featuring male-to-male (pinned) APC adapters, this panel provides efficient internal shuffling for up to 128 fibers on OS2 single mode infrastructure within half the height of a standard rack unit.

Constructed from lightweight AL5052 premium aluminum alloy, this enclosure fits standard 19-inch equipment racks. It utilizes G.657.A1 bend-insensitive single mode fiber and supports a Type 4 polarity structure with Key Up to Key Down adapter alignment, delivering exceptionally low insertion loss (≤0.35dB) and high return loss (≥60dB) for critical optical switch interconnects.

KEY FEATURES

• Space-saving 0.5U form factor designed for ultra-high-density 19-inch rack deployment.

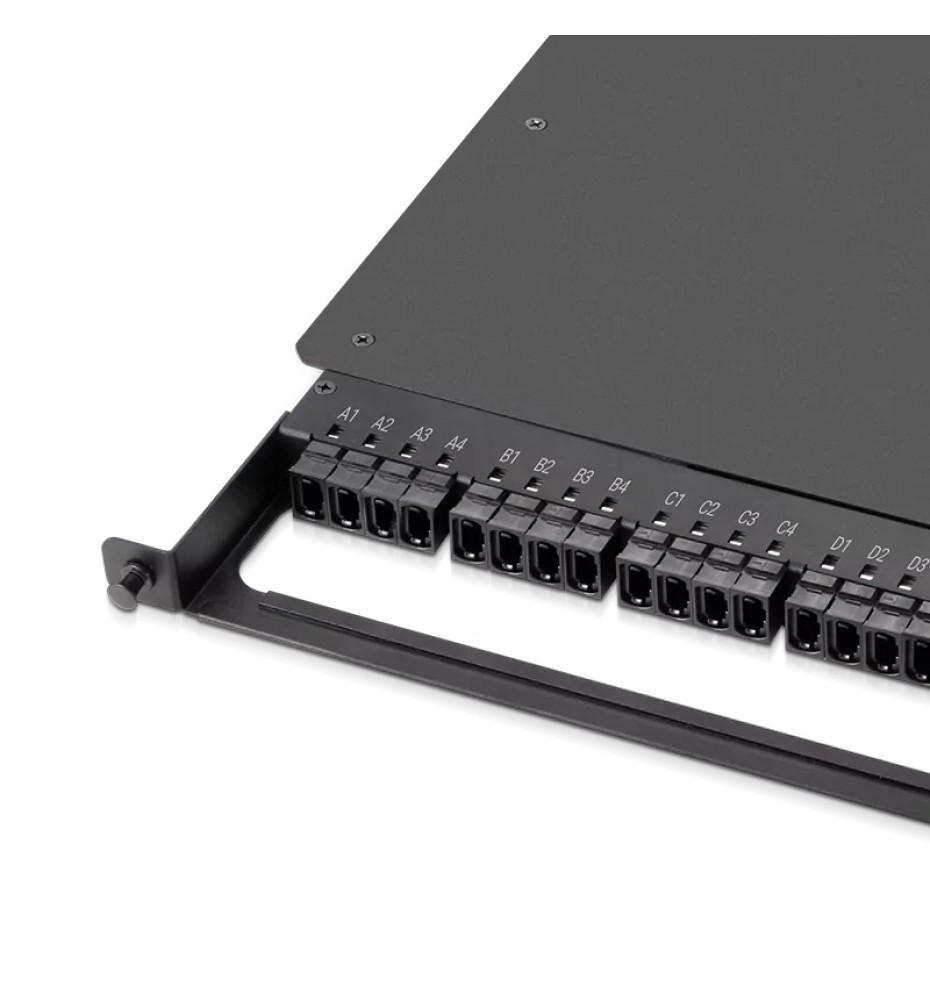

• Loaded with 32 MPO APC male-to-male (pinned) adapters supporting up to 128 fibers (32 x 8F).
• OS2 9/125μm single mode capability with G.657.A1 bend-insensitive fiber performance.
• Type 4 polarity architecture with Key Up to Key Down adapter orientation for direct mesh routing.
• Low optical insertion loss (≤0.35dB) and high return loss (≥60dB) for maximum transmission integrity.
• Durable AL5052 aluminum alloy construction offering a lightweight yet sturdy structural frame.
