Cable Type: 1U 128 Fibers Multimode Shuffle Box

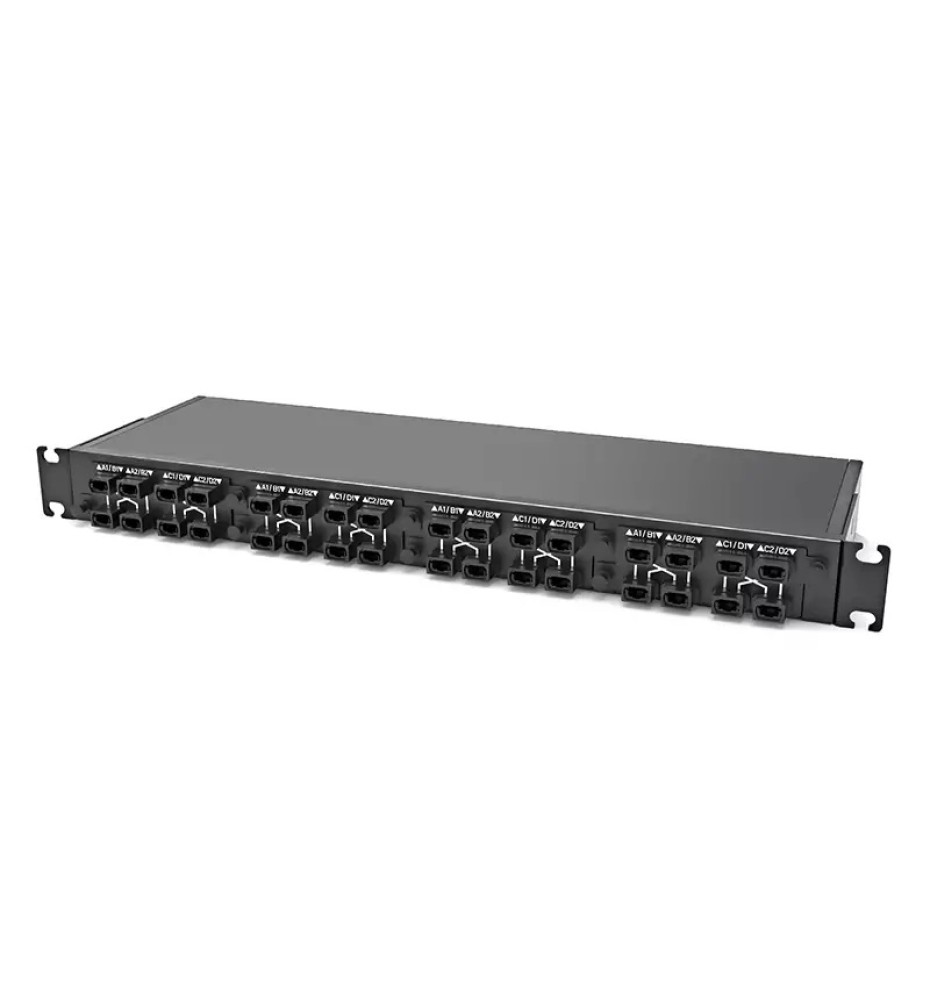

This 1U rack mount shuffle box enclosure is engineered to manage high-density multi-fiber connectivity in modern data centers and optical networking racks. Pre-loaded with 32 front MPO ports featuring male-to-male (pinned) APC adapters, this enclosure provides direct internal shuffling for up to 128 fibers on OM4 multimode infrastructure, eliminating complex manual cable patching.

Constructed from durable 1.2mm premium cold rolled steel sheet, this 1U panel fits standard 19-inch equipment racks. It supports a Type 2 polarity layout with Key Up to Key Down adapter alignment, maintaining low insertion loss (≤0.35dB) and reliable channel routing for high-performance optical networks.

KEY FEATURES

• 1U 19-inch rack mount form factor optimized for high-density cabinet environments.
• Loaded with 32 MPO APC male-to-male (pinned) adapters supporting up to 128 fibers (32 x 8F).
• OM4 multimode compatibility with bend-insensitive fiber performance.
• Type 2 polarity architecture with Key Up to Key Down adapter orientation.
• Low insertion loss (≤0.35dB) and high return loss (≥35dB) for signal stability.
• Heavy-duty 1.2mm cold rolled steel construction for long-term structural durability.

TECHNICAL SPECIFICATIONS
