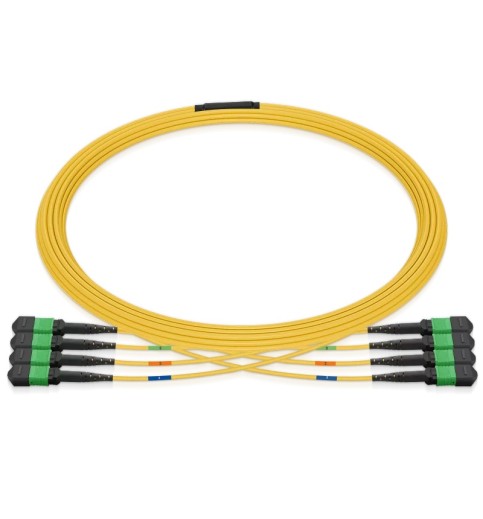

MPO 4x4 Shuffle Breakout Cable, 32 Fibers, 4xMPO-8 APC (Female) to 4xMPO-8 APC (Female), Single Mode (OS2), Type 4, OFNP, 3.0mm, Max IL ≤ 0.35dB, Yellow
- Product Code: S2MPOA4x8F4
- Availability: In Stock
Cable Type: 4x8 Fibers Female OS2 Shuffle
This pre-terminated 32 fiber MPO 4x4 shuffle breakout cable is designed to streamline mesh network topologies and high-density optical routing in modern enterprise data centers. Featuring 4 MPO-8 APC female connectors on both ends, this cable directly routes and redistributes 8-fiber optical channels without requiring separate shuffle panels or patch frames.
Built with an OFNP (Plenum) flame-rated jacket, this cable meets strict building safety codes for installation in plenum spaces and environmental air ducts. It incorporates premium G.657.A1 bend-insensitive single mode fiber (fully backward compatible with G.652.D), a tight 10mm minimum bend radius for compact routing, Type 4 polarity structure, and maximum insertion loss of 0.35dB for superior optical link integrity.
KEY FEATURES

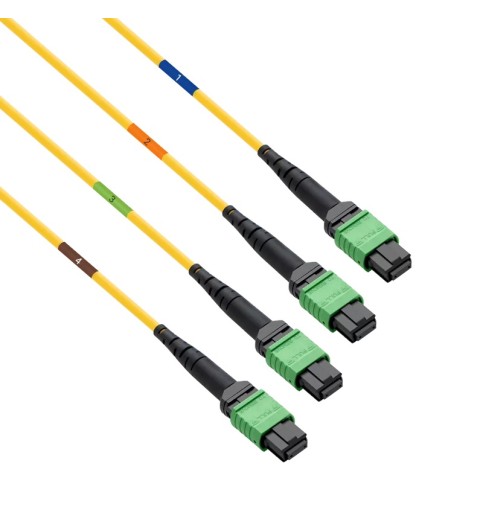

- 4x4 shuffle breakout configuration utilizing 4 x MPO-8 APC female connectors on each side.
- OFNP (Plenum) flame rating suitable for air handling and plenum duct spaces.
- G.657.A1 bend-insensitive OS2 9/125μm single mode fiber, fully compatible with G.652.D.
- Type 4 polarity layout tailored for direct optical switch-to-switch mesh networks.
- Low optical insertion loss (≤0.35dB) combined with high return loss (≥60dB) for dependable signal transmission.
- Space-saving 3.0mm cable outer diameter with a tight 10mm minimum bend radius for high-density cabinet environments.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Female to MPO Female (4 x MPO-8) |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Polish Type | APC to APC |
| Polarity | Type 4 |
| Fiber Mode | OS2 9/125μm Single Mode |
| Fiber Count | 32 Fibers (4x8F to 4x8F) |
| Wavelength | 1310 nm / 1550 nm |
| Insertion Loss | ≤0.35 dB Max |
| Return Loss | ≥60 dB |
| Attenuation | ≤0.35 dB/km at 1310 nm | ≤0.21 dB/km at 1550 nm |
| Cable Jacket / Flame Rating | OFNP / LSZH (Single Jacket, Yellow) |
| Cable Diameter (OD) | 3.0 mm |
| Min. Bend Radius | 10 mm |
| Tensile Strength | 80 N (Long Term) / 150 N (Short Term) |
| Connector Durability | ≥500 - 1000 Mating Cycles |
| Operating Temperature | OFNP: 0°C to 70°C | LSZH: -20°C to 70°C |
