Cable Type: 4x8 Fibers Female OS2 Shuffle

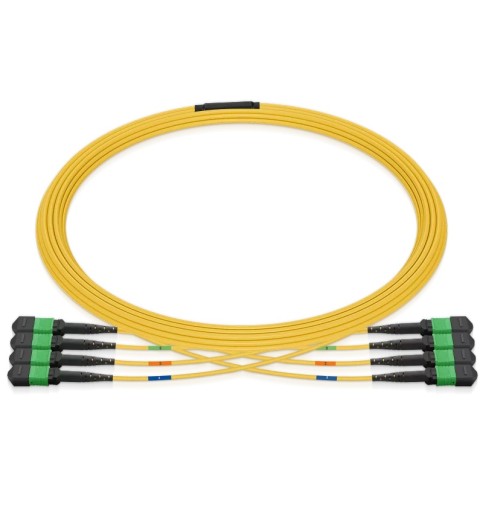

This pre-terminated 32 fiber MPO 4x4 shuffle breakout cable is engineered to optimize mesh network topologies and high-density optical patching in modern data center environments. Featuring 4 MPO-8 APC female connectors on both ends, this cable directly routes and redistributes 8-fiber optical channels without requiring complex external shuffle frames or patch panels.

Manufactured with premium G.657.A1 bend-insensitive single mode fiber (fully backward compatible with G.652.D), it provides exceptional flexibility with a tight 10mm minimum bend radius for compact routing. Designed with a Type 4 polarity structure, low maximum insertion loss of 0.35dB, and a space-saving 3.0mm Low Smoke Zero Halogen (LSZH) outer jacket, this breakout cable ensures reliable signal integrity and safe indoor cable deployment.

KEY FEATURES

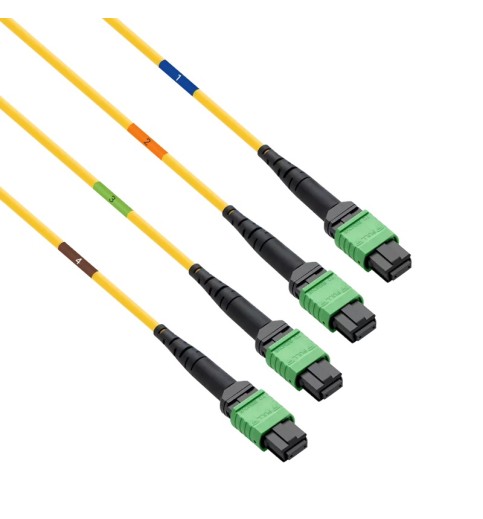

• 4x4 shuffle breakout design utilizing 4 x MPO-8 APC female connectors on both ends.
• G.657.A1 bend-insensitive OS2 9/125μm single mode fiber, backward compatible with G.652.D.
• Type 4 polarity scheme optimized for direct switch-to-switch mesh network architecture.
• Low optical insertion loss (≤0.35dB) and high return loss (≥60dB) for high-speed transmission stability.
• Compact 3.0mm cable outer diameter with a tight 10mm minimum bend radius for high-density cabinet routing.
• LSZH flame-rated outer jacket reducing toxic gas emissions in high-density rack configurations.
