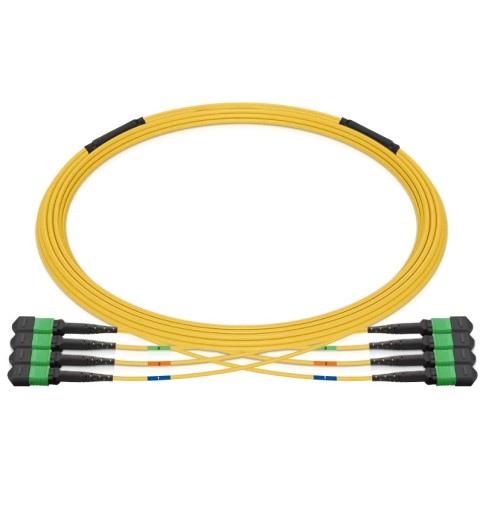

Pre-terminated MPO 4x4 Shuffle Trunk Cable, 32 Fibers, 4 x MPO-8 APC (Female) to 4 x MPO-8 APC (Female), Single Mode (OS2), Type 4, OFNP, 0.35dB Max, Breakout 5m, Yellow
- Product Code: S2MPOA32F4
- Availability: In Stock
Cable Type: 32 Fibers Female OS2 Shuffle
This pre-terminated 32 fiber MPO 4x4 shuffle trunk cable is designed to streamline complex mesh network topologies and high-density optical routing in modern data centers. Equipped with 4 MPO-8 APC female connectors on each end, this cable facilitates efficient switch-to-switch mesh connectivity without requiring dedicated optical shuffle panels or patch bays.
Built with an OFNP (Plenum) flame-rated jacket, this cable meets strict building fire safety standards for installation in plenum spaces and environmental air ducts. It features premium G.657.A1 bend-insensitive single mode fiber (fully backward compatible with G.652.D), a tight 10mm minimum bend radius, Type 4 polarity configuration, and extended 5m breakout legs to provide maximum installation flexibility and dependable optical performance.
KEY FEATURES

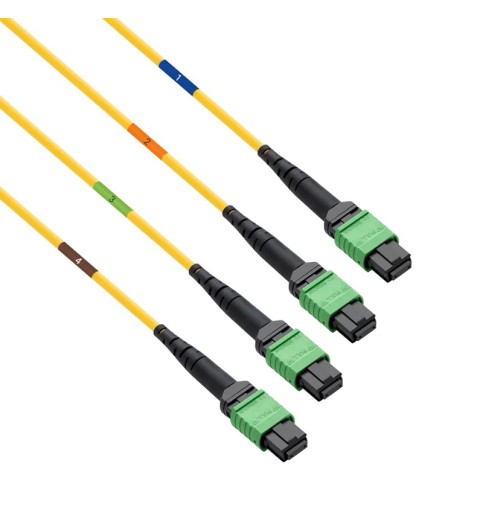

- Advanced 4x4 shuffle architecture featuring 4 x MPO-8 APC female connectors on both ends.
- OFNP (Plenum) rated jacket compliant with strict building code fire safety standards for air handling spaces.
- G.657.A1 bend-insensitive OS2 9/125μm single mode fiber, fully compatible with G.652.D.
- Type 4 polarity layout optimized for direct optical shuffle network mapping.
- Low optical insertion loss (≤0.35dB) and high return loss (≥60dB) for stable signal transmission.
- Compact 10mm minimum bend radius and extended 5m (500cm) breakout legs with 3.0mm diameter for convenient long-reach panel routing.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Female to MPO Female (4 x MPO-8) |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Polish Type | APC to APC |
| Polarity | Type 4 |
| Fiber Mode | OS2 9/125μm Single Mode |
| Fiber Count | 32 Fibers (4x8F to 4x8F) |
| Wavelength | 1310 nm / 1550 nm |
| Insertion Loss | ≤0.35 dB Max |
| Return Loss | ≥60 dB |
| Attenuation | ≤0.21 dB/km at 1310 nm | ≤0.35 dB/km at 1550 nm |
| Cable Jacket / Flame Rating | OFNP / LSZH (Single Jacket, Yellow) |
| Cable Outside Diameter (OD) | 3.5 mm |
| Breakout Outside Diameter (OD) | 3.0 mm |
| Breakout Length | 5.0 m |
| Min. Bend Radius | 10 mm |
| Tensile Strength | 200 N (Long Term) / 660 N (Short Term) |
| Connector Durability | ≥500 - 1000 Mating Cycles |
| Operating Temperature | OFNP: 0°C to 70°C | LSZH: -20°C to 70°C |
