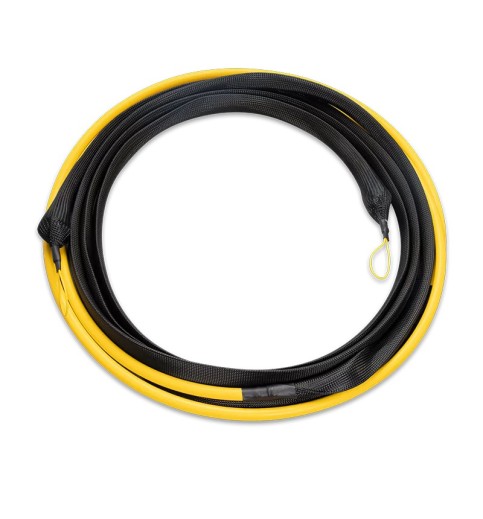

Pre-terminated MPO Trunk Cable, 128 Fibers, 16 x MPO-8 APC (Female) to 16 x MPO-8 APC (Female) Single Mode (OS2) Type B, LSZH, 0.35dB Max, Breakout 80cm, Double Jacket, Yellow
- Product Code: MF-S16x8MPOFAB
- Availability: In Stock
Cable Type: 128 Fibers 16 x MPO-8 Single Mode
This pre-terminated 128 fiber MPO trunk cable delivers high-density connectivity for modern data centers and enterprise optical networks. Engineered with 16 MPO-8 APC female connectors on each end, this OS2 single mode assembly facilitates reliable 40G, 100G, and high-speed multi-fiber installations with optimal port utilization.
Featuring a Type B polarity design, this high-performance trunk cable streamlines signal routing while maintaining low optical insertion loss at a maximum of 0.35dB. The rugged double jacket construction with Low Smoke Zero Halogen (LSZH) properties ensures excellent physical protection, enhanced flame retardation, and reduced environmental impact during operational installation.
KEY FEATURES
- High-density 128-fiber core utilizing 16 x MPO-8 APC female to female connectors.
- OS2 9/125μm single mode optical performance for long-distance data transmission.
- Type B polarity for accurate pinout alignment across high-density fiber networks.
- Low insertion loss (≤0.35dB) and high return loss (≥60dB) for signal integrity.

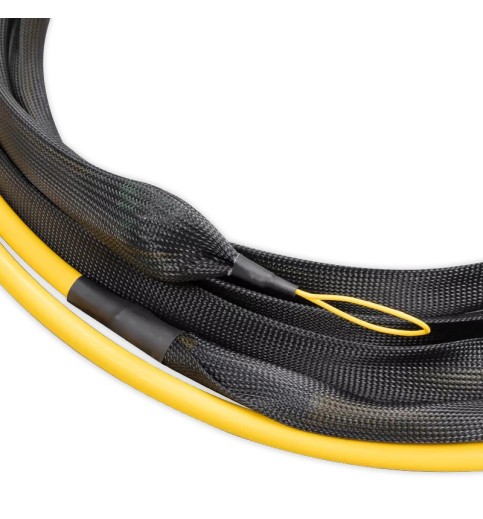

- Durable double-layer LSZH jacket with a robust 17.0-18.0mm outer diameter.

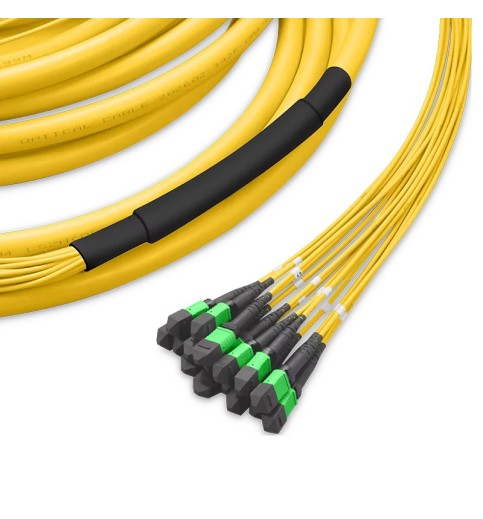

- 0.8m (80cm) breakout legs with a 3.0mm diameter for convenient patch panel routing.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Female to MPO Female (16 x MPO-8) |
| Polish Type | APC to APC |
| Polarity | Type B |
| Fiber Mode | OS2 9/125μm Single Mode |
| Fiber Count | 128 Fibers (16 x 8 Fibers) |
| Wavelength | 1310 nm / 1550 nm |
| Insertion Loss | ≤0.35 dB Max |
| Return Loss | ≥60 dB |
| Attenuation | ≤0.35 dB/km at 1310 nm | ≤0.21 dB/km at 1550 nm |
| Cable Jacket / Rating | LSZH / OFNP (Double Jacket, Yellow) |
| Cable Outer Diameter (OD) | 17.0 mm - 18.0 mm |
| Breakout Outer Diameter | 3.0 mm |
| Breakout Length | 0.8 m (80 cm) |
| Tensile Strength | 200 N (Long Term) / 660 N (Short Term) |
| Connector Durability | ≥500 - 1000 Mating Cycles |
| Operating Temperature | LSZH: -20°C to 70°C | OFNP: 0°C to 70°C |
