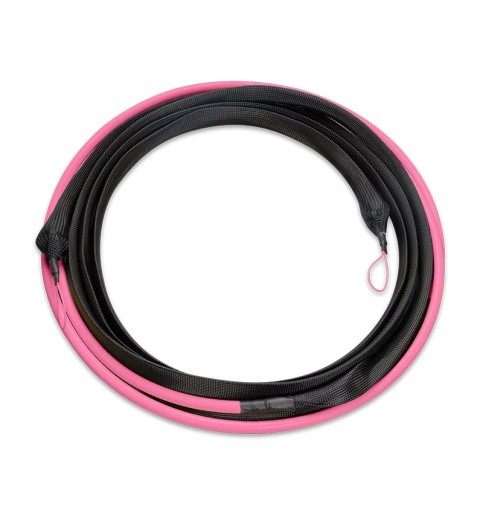

Pre-terminated MPO Trunk Cable, 192 Fibers, 24 x MPO-8 APC (Male) to 24 x MPO-8 APC (Male) Multimode (OM4) Type B, LSZH, 0.35dB Max, Breakout 80cm, Double Jacket, Magenta
- Product Code: MF-M24x8MPOMAB
- Availability: In Stock
Cable Type: 192 Fibers 24 x MPO-8 Multimode
The 192 Fiber MPO Trunk Cable is designed for ultra-high-density data center infrastructure and high-capacity enterprise networks. Factory pre-terminated with 24 x MPO-8 APC Male to 24 x MPO-8 APC Male connectors on each end, this high-performance trunk cable significantly reduces installation labor, minimizes cable management complexity, and accelerates network deployment.
Engineered for OM4 50/125μm multimode optical systems, it utilizes Type B polarity to ensure seamless transceiver-to-transceiver communication. Built with a rugged double jacket protection and available with LSZH/OFNP flame-retardant ratings, it delivers maximum physical durability and fire safety while maintaining a low insertion loss of 0.35dB Max.
KEY FEATURES
- Ultra-high capacity 192 fiber count design with 24x MPO-8 APC Male connectors on each end.
- OM4 50/125μm multimode optical fiber optimized for 850nm and 1300nm transmission wavelengths.
- Type B polarity design tailored for high-speed multi-fiber connectivity.

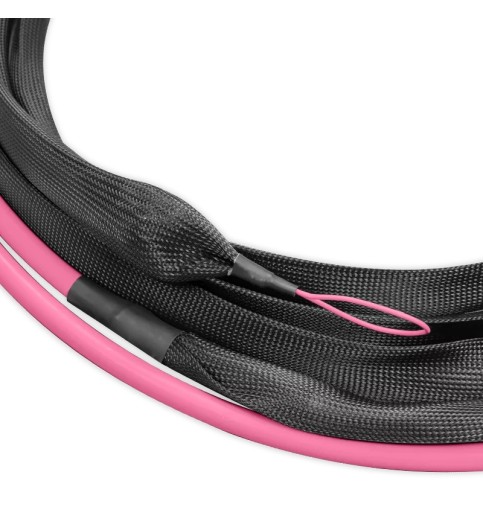

- Heavy-duty double jacket outer casing for superior tensile strength and physical protection.
- Flame-retardant LSZH/OFNP cable jacket in standard safety magenta color.

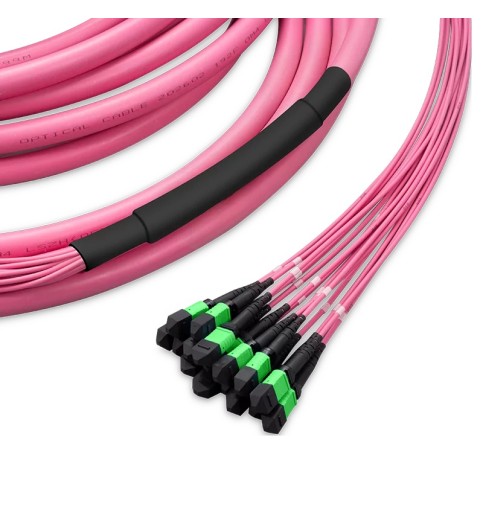

- 0.8m breakout length with 3.0mm sub-cables for clean and organized rack routing.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Male to MPO Male (24x MPO-8) |
| Polish Type | APC to APC |
| Fiber Mode | OM4 50/125μm Multimode |
| Fiber Count | 192 Fibers (24 x 8 Fibers) |
| Polarity | Type B |
| Wavelength | 850nm / 1300nm |
| Insertion Loss | ≤ 0.35 dB |
| Return Loss | ≥ 35 dB |
| Attenuation at 850 nm | ≤ 2.3 dB/km |
| Attenuation at 1300 nm | ≤ 1.0 dB/km |
| Cable Outer Diameter (OD) | 20.7 - 21.3 mm |
| Breakout OD / Length | 3.0 mm / 0.8 m (80 cm) |
| Cable Construction | Double Jacket |
| Tensile Strength | 400N (Long Term) / 1320N (Short Term) |
| Flame Rating | LSZH / OFNP |
| Durability | ≥ 500 - 1000 Mating Cycles |
| Operating Temperature | LSZH: -20°C to +70°C / OFNP: 0°C to +70°C |
