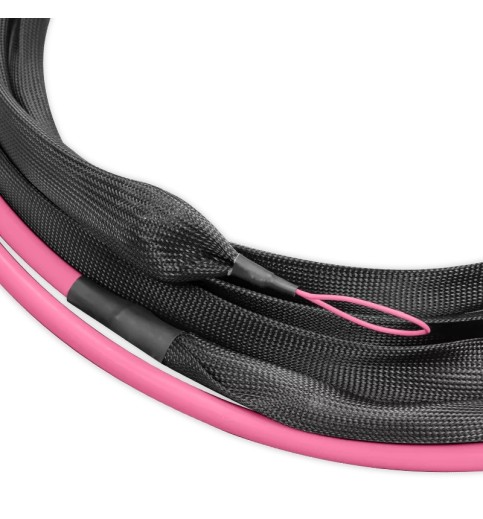

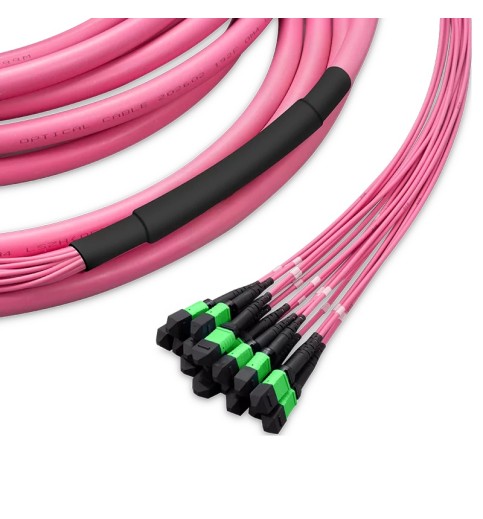

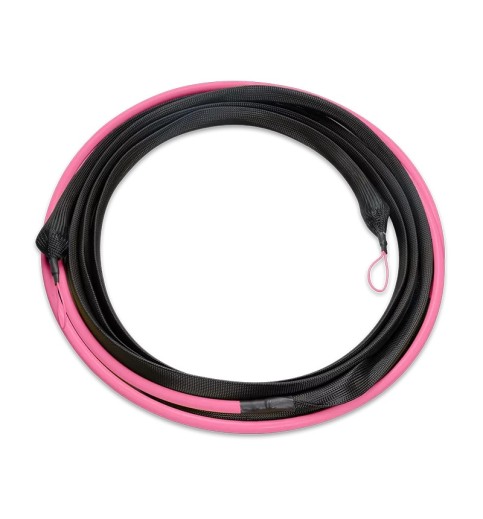

Cable Type: 128 Fibers 16 x MPO-8 Multimode

The 128 Fiber MPO Trunk Cable is designed for ultra-high-density data center backbones and enterprise infrastructure. Factory pre-terminated with 16 x MPO-8 APC Female to 16 x MPO-8 APC Female connectors on each end, this high-performance cable accelerates network installation while minimizing deployment complexity and labor costs.

Engineered for OM4 50/125μm multimode optical networks, this cable features Type B polarity for efficient transceiver-to-transceiver connectivity. Built with a robust double jacket construction and rated for LSZH/OFNP flame performance, it provides enhanced mechanical protection, durability, and fire safety in demanding environments with a maximum insertion loss of 0.35dB.

KEY FEATURES

• High-capacity 128 fiber count configuration with 16x MPO-8 APC Female connectors on both sides.
• OM4 50/125μm multimode optical fiber optimized for 850nm and 1300nm wavelengths.
• Type B polarity design tailored for high-speed network connections.
• Rugged double jacket construction for superior tensile strength and physical protection.
• Flame-retardant LSZH/OFNP cable jacket in standard magenta color.
• 0.8m breakout length with 3.0mm outer diameter sub-cables for flexible rack routing.

TECHNICAL SPECIFICATIONS
