Cable Type: MMC-16 APC Female OM4

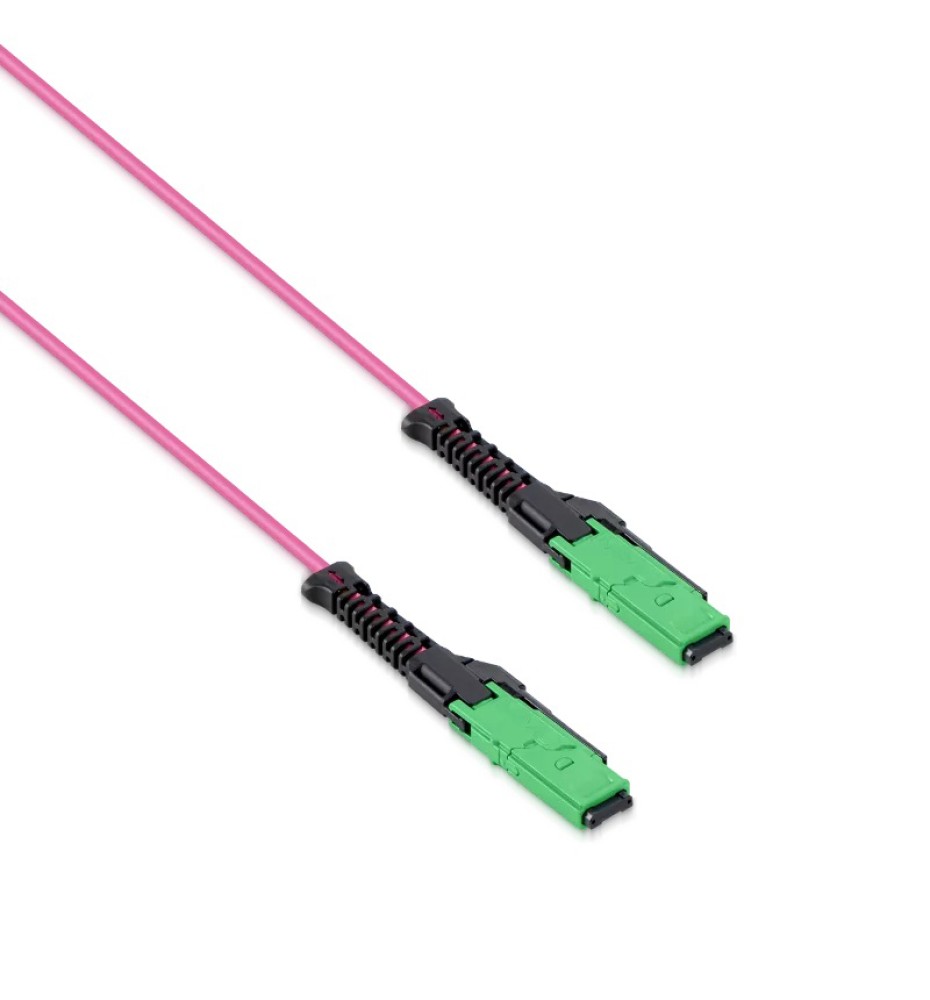

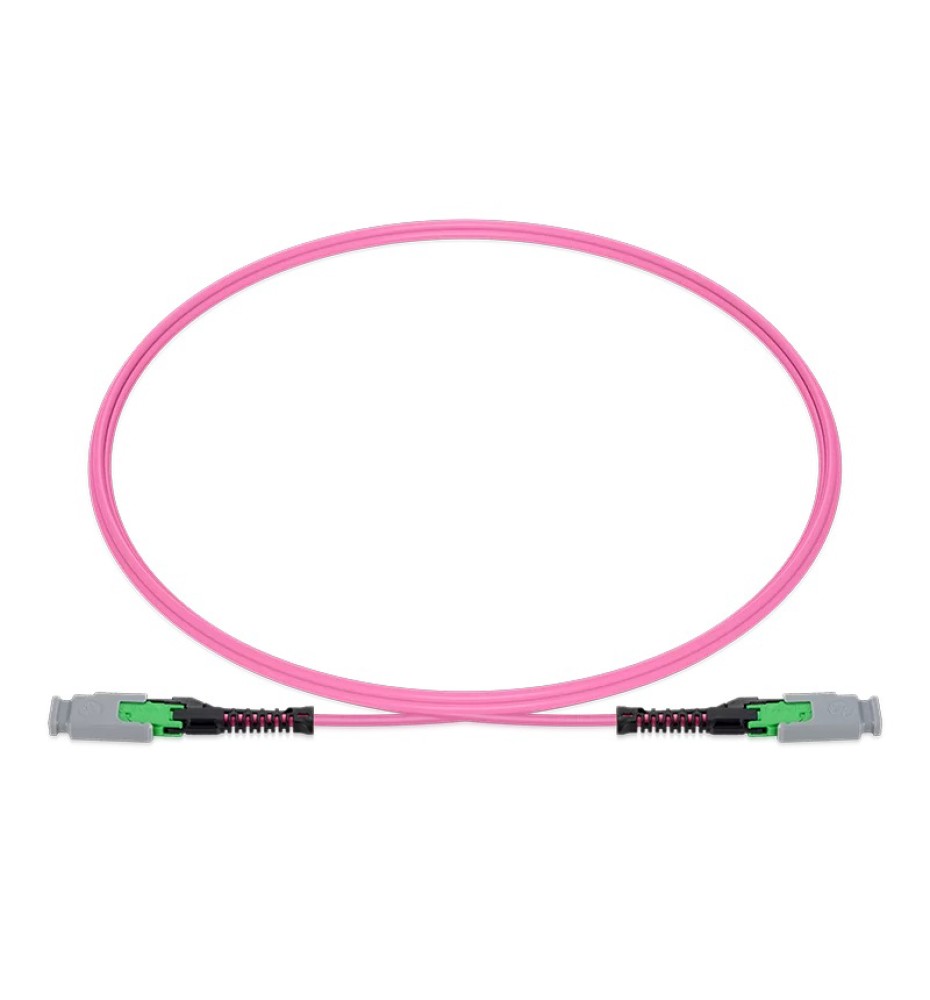

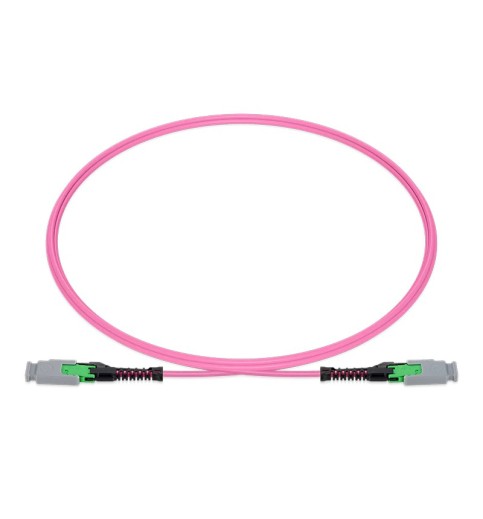

The 16 Fiber MMC Multimode Jumper Cable is designed for ultra-high-density optical interconnections and high-speed data center networks. Terminated with MMC-16 APC Female to MMC-16 APC Female connectors, this compact jumper cable optimizes rack space while delivering exceptional optical performance.

Featuring OM4 50/125μm bend-insensitive multimode fiber, it supports reliable optical transmission at 850nm and 1300nm wavelengths with an ultra-small 7.5mm minimum bend radius. The 2.5mm magenta cable jacket is plenum-rated (OFNP), ensuring full compliance with stringent fire safety standards for indoor installation in air ducts and plenum spaces.

KEY FEATURES

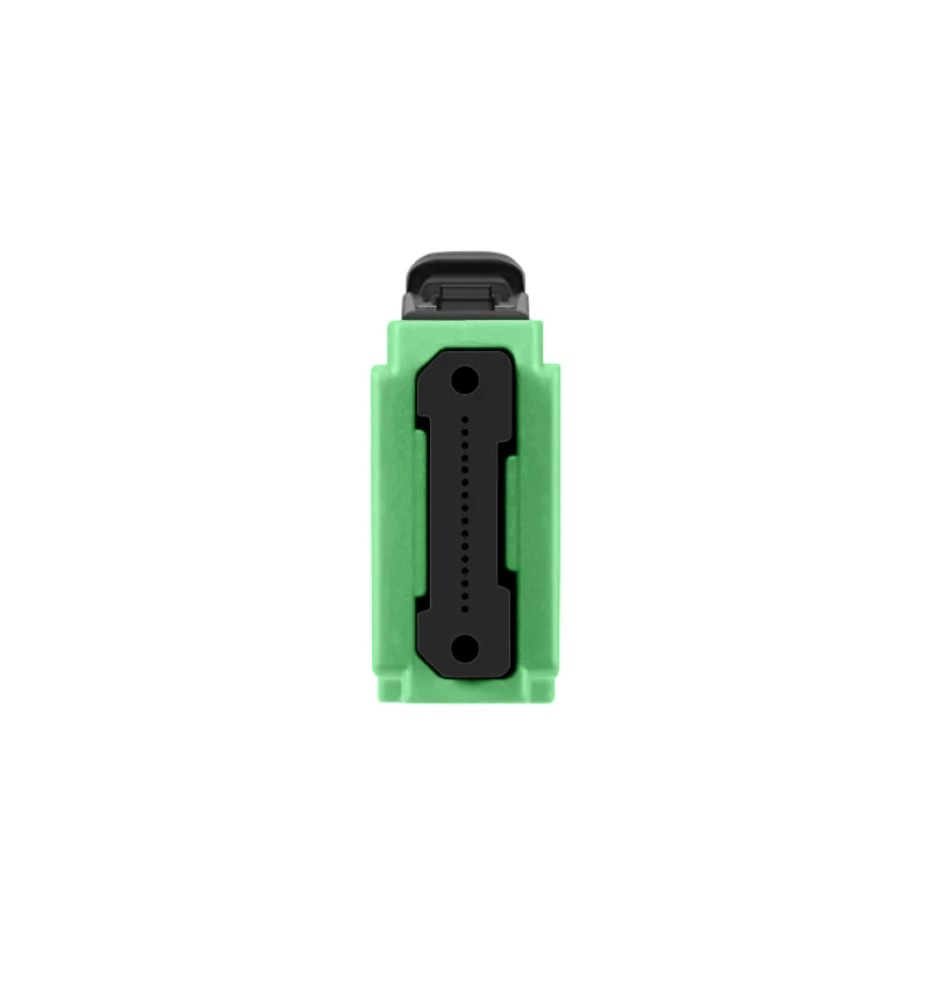

• High-density 16-fiber MMC connector design for maximum space savings in high-density environments.
• MMC-16 APC Female to MMC-16 APC Female termination with low insertion loss (≤0.35dB).
• OM4 50/125μm bend-insensitive multimode fiber with 7.5mm minimum bend radius.
• Jumper polarity configuration tailored for high-speed network patch connections.
• OFNP (Plenum) fire-rated 2.5mm outer jacket in standard magenta color.
• Durable design tested for 500 to 1000 mating cycles in operating temperatures from 0°C to +70°C.

TECHNICAL SPECIFICATIONS
