Cable Type: MMC-16 APC Male OS2

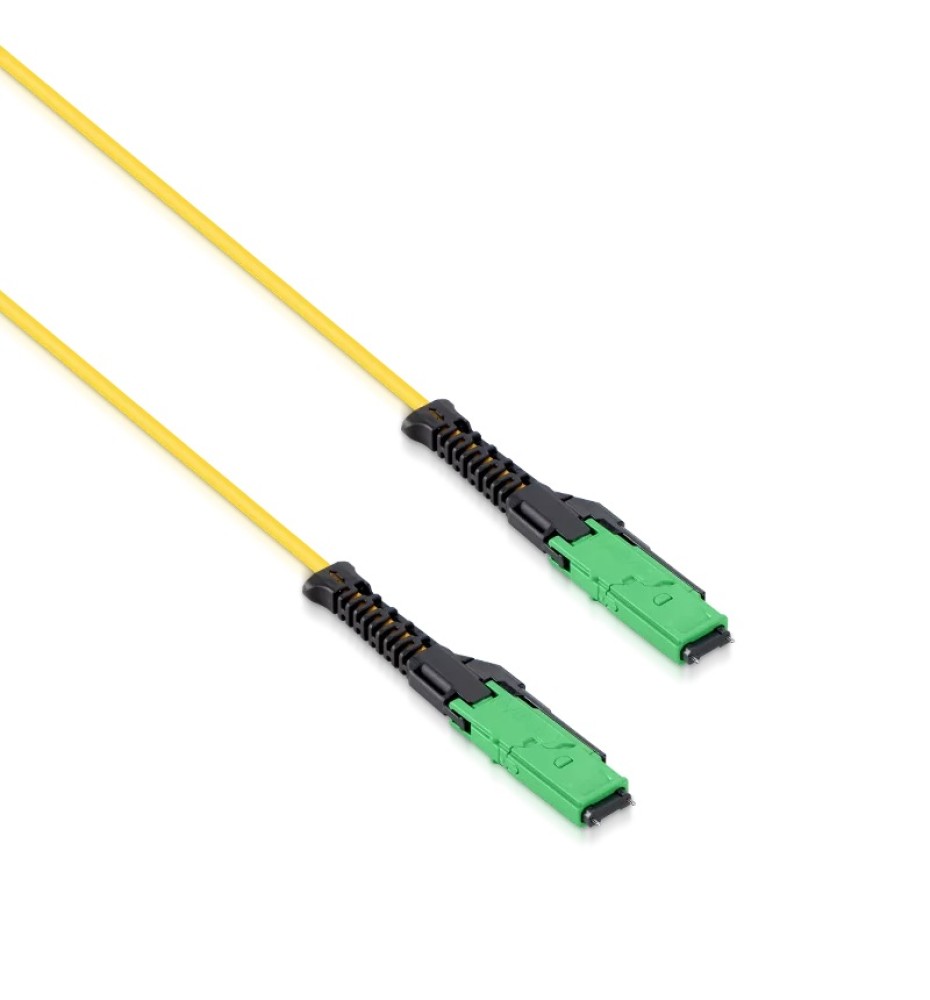

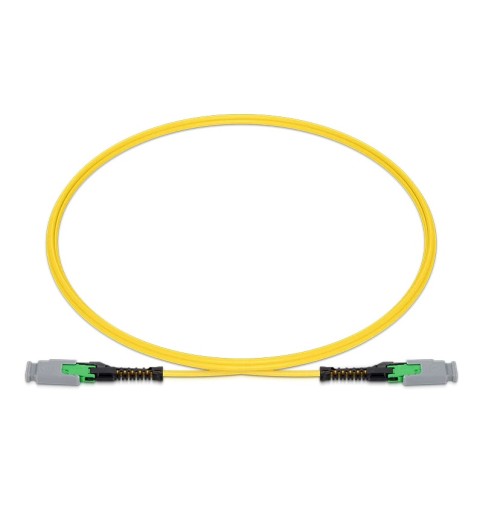

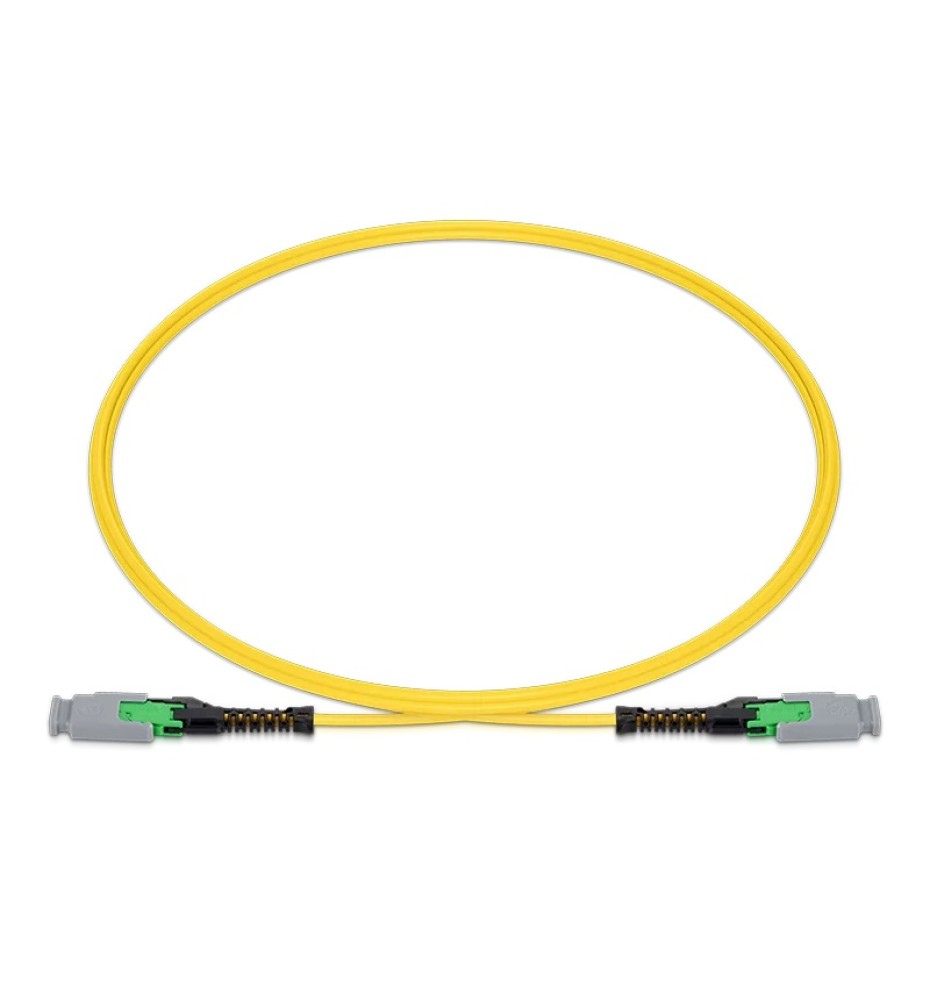

The 16 Fiber MMC Jumper Cable is designed for ultra-high-density optical networks and next-generation data center interconnects. Terminated with MMC-16 APC Male to MMC-16 APC Male connectors, this compact patch cable significantly increases fiber density while delivering low insertion loss and dependable optical performance.

Built with G.657.A1 single-mode fiber (fully compatible with G.652.D standards), it features a small 10mm minimum bend radius, making it ideal for tight routing environments. The 2.5mm yellow jacket is plenum-rated (OFNP), providing maximum fire safety compliance for indoor deployment in air ducts and plenum spaces.

KEY FEATURES

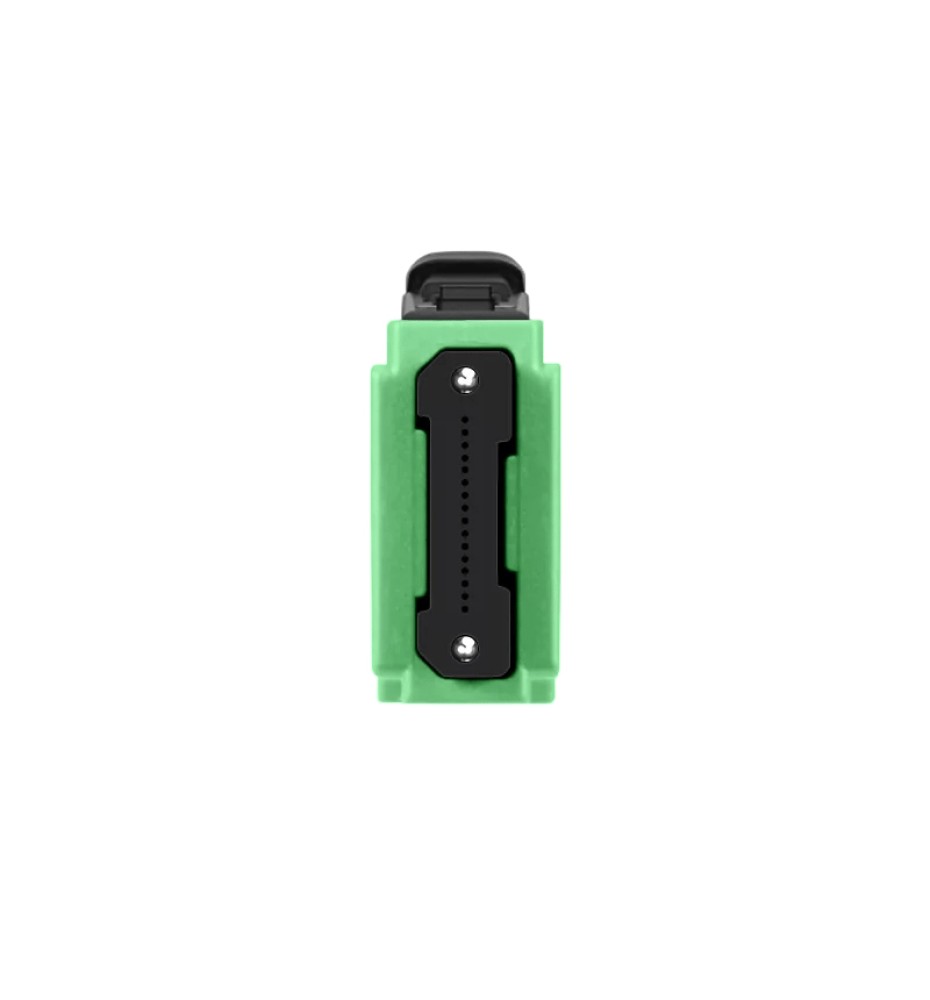

• High-density 16-fiber MMC connector design for streamlined cable management.
• MMC-16 APC Male to MMC-16 APC Male termination with low insertion loss (≤0.35dB).
• Bend-insensitive G.657.A1 single-mode optical fiber with 10mm minimum bend radius.
• Trunk polarity configuration for reliable signal transmission.
• OFNP (Plenum) fire-rated 2.5mm cable jacket for high safety standards.
• Engineered for high-density patch panels, optical switches, and data center racks.

TECHNICAL SPECIFICATIONS
