Cable Type: 72 Fibers MPO to MPO Single Mode

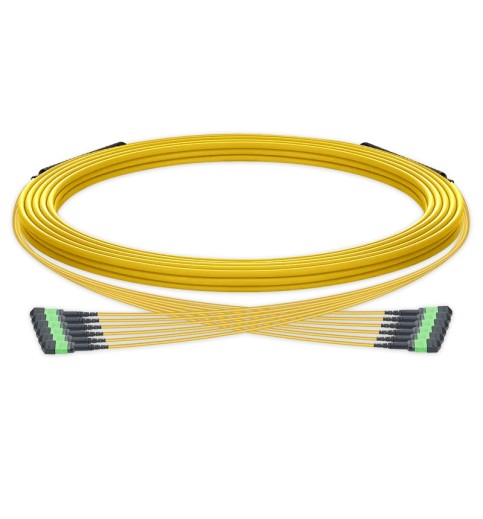

The 72 Fiber MPO Trunk Cable is an ideal solution for high-density data center interconnections and enterprise backbone networks. Factory pre-terminated with 6 x MPO-12 APC Male to 6 x MPO-12 APC Male connectors on each end, this high-performance cable reduces installation time and minimizes deployment costs while offering outstanding transmission speed and efficiency.

Designed for OS2 9/125μm single-mode optical systems, this trunk cable utilizes Type B polarity for direct transceiver-to-transceiver connectivity. Featuring a robust Low Smoke Zero Halogen (LSZH) / OFNR flame-rated jacket and an ultra-low insertion loss of 0.35dB Max, it ensures stable and reliable signal integrity over long distances.

KEY FEATURES

• Pre-terminated 72 fiber count design with 6x MPO-12 APC Male connectors per side.
• OS2 9/125μm single mode optical fiber optimized for 1310nm and 1550nm wavelengths.
• Type B polarity engineered for high-speed network connections.
• Ultra-low insertion loss (≤0.35dB) and high return loss (≥60dB) for optimal optical efficiency.
• Flame-retardant LSZH/OFNR outer jacket in standard safety yellow color.
• Breakout length of 0.8m with 3.0mm diameter branches for easy routing in rack units.

TECHNICAL SPECIFICATIONS
