Cable Type: MMC-16 APC Male OM4

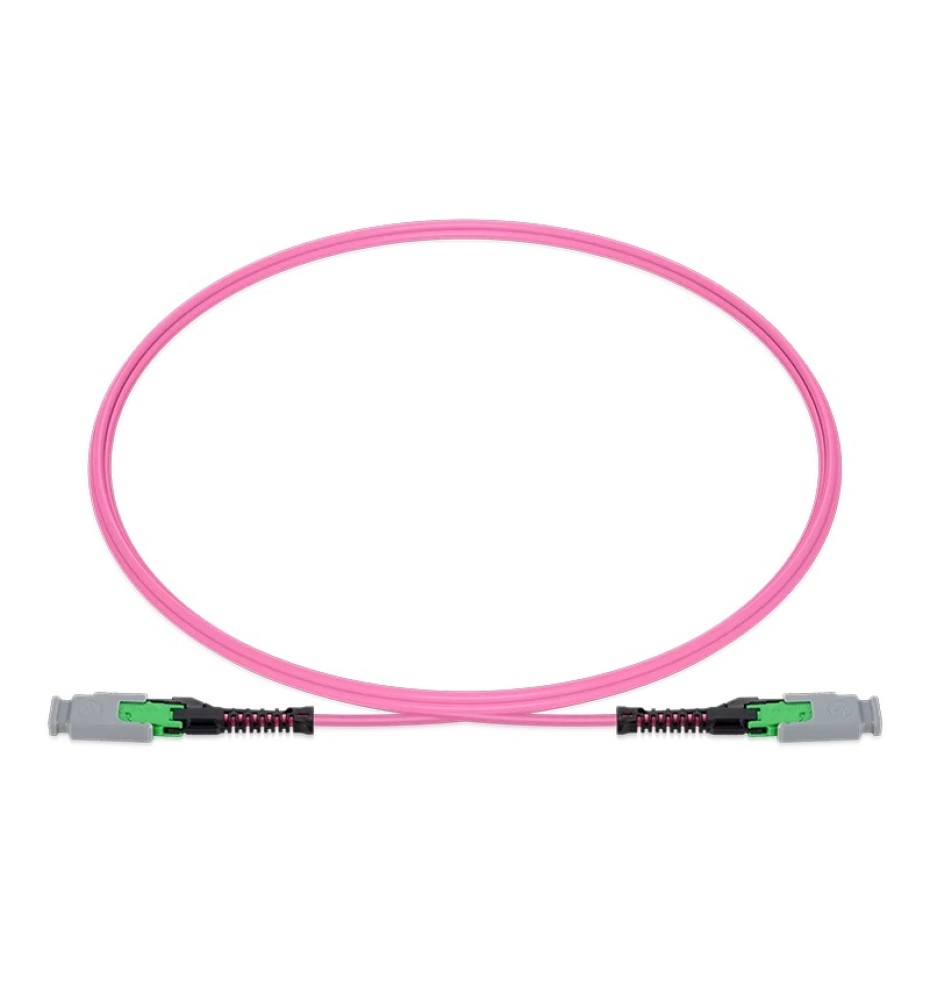

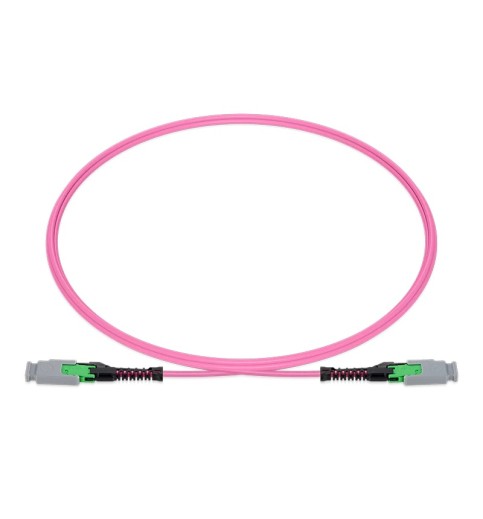

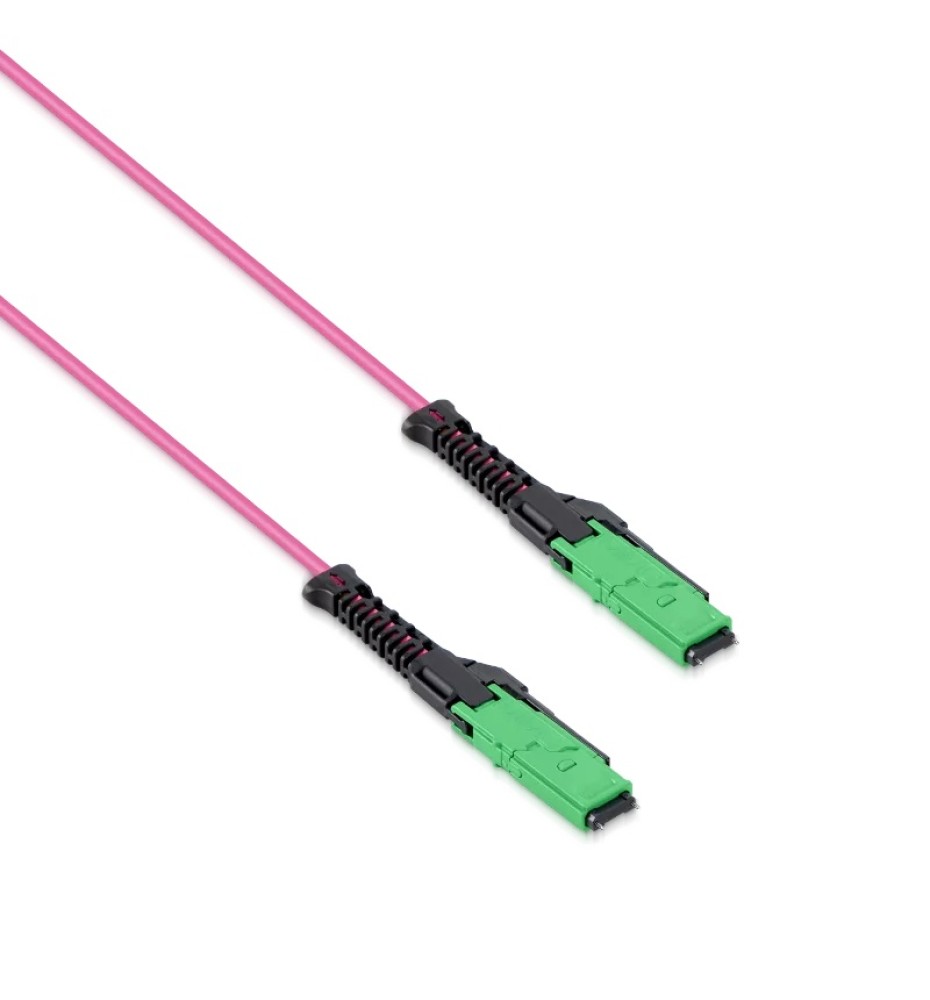

The MMC-16 APC Male to MMC-16 APC Male 16 Fibers OM4 Multimode Fiber Jumper Cable is a Very Small Form Factor (VSFF) optical assembly designed for ultra-high-density data center environments and enterprise networks. Utilizing the innovative Micro Optical Connector (MMC) technology, this 16-fiber jumper cable maximizes cabinet space efficiency while delivering reliable optical performance across high-speed optical links.

KEY FEATURES & BENEFITS

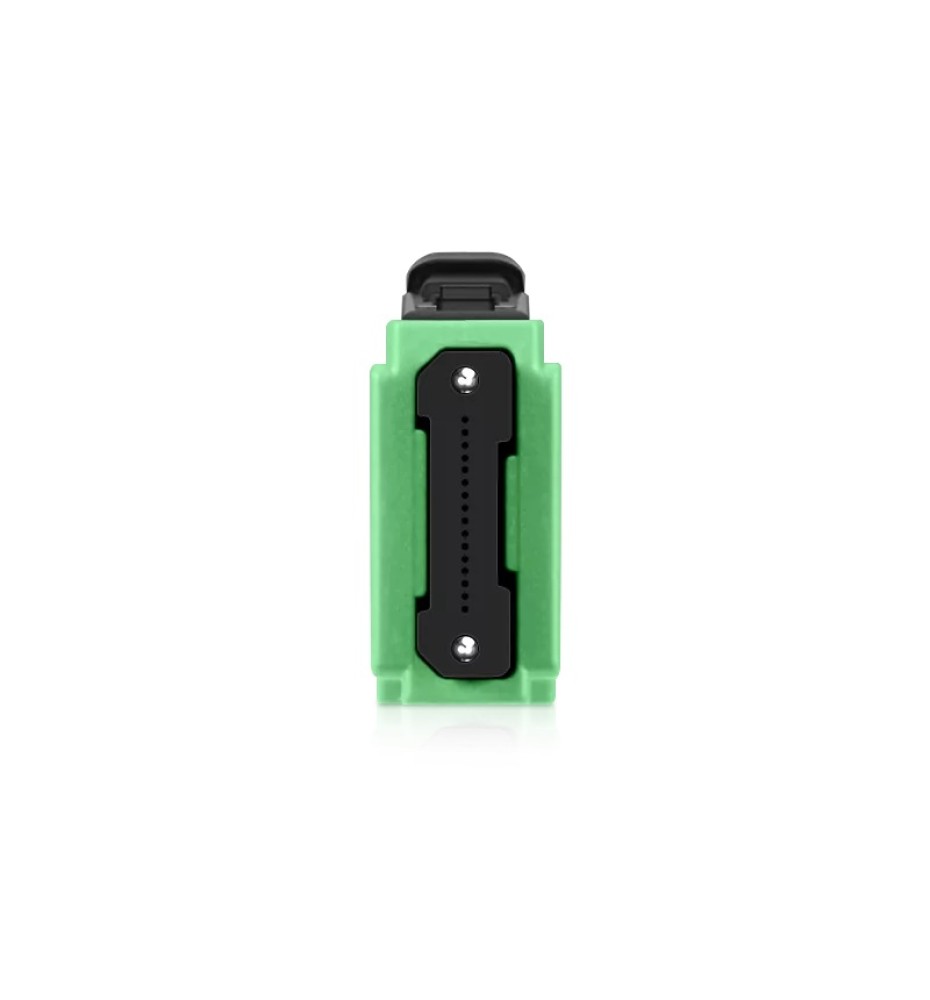

• Ultra High-Density MMC Format: Compact MMC-16 connectors offer a smaller footprint than conventional multi-fiber connectors, enabling higher panel density and improved airflow.
• Optimized OM4 Multimode Performance: Built with 50/125μm OM4 bend-insensitive fiber, optimized for high-bandwidth 850nm and 1300nm transmission.
• Low Insertion Loss: Precision APC polishing ensures a maximum insertion loss of ≤0.35dB and return loss of ≥35dB for excellent signal integrity.
• OFNP Flame Rating: Features an Optical Fiber Nonconductive Plenum (OFNP) rated outer jacket, meeting strict building fire safety codes for plenum space installations.
• Flexible Cable Design: Compact 2.5mm jacket diameter with a minimum bend radius of 7.5mm allows easy routing in tight spaces.

TECHNICAL SPECIFICATIONS
