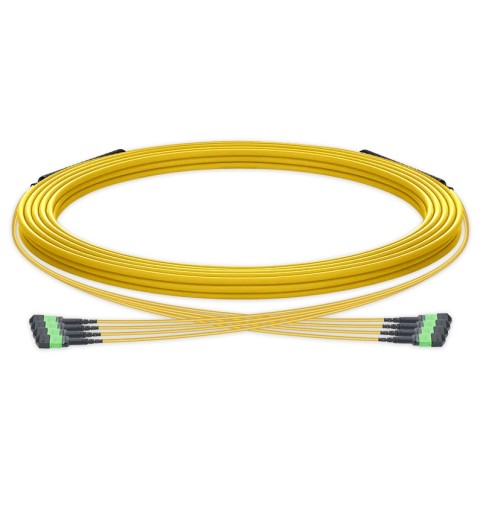

Pre-terminated MPO trunk cable, 48 Fibers, 4 x MPO-12 APC (Male) to 4 x MPO-12 APC (Male) Single Mode (OS2) Type B, LSZH（OFNR）, 0.35dB Max, Yellow, breakout 80cm
- Product Code: MF-S48MPOMAB
- Availability: In Stock
Cable Type: 48 Fibers MPO to MPO Single Mode
The 48 Fibers Pre-Terminated OS2 MPO Trunk Cable is a high-density single-mode optical assembly designed for backbone cabling in modern data centers, telecommunication central offices, and enterprise networks. Featuring four 12-fiber MPO-12 APC Male connectors on each end, this factory-terminated trunk cable streamlines cable routing and avoids the need for complex field terminations.
KEY FEATURES & BENEFITS
- High-Density 48-Fiber Capacity: Combines 4x MPO-12 breakouts into a single cable assembly to save rack space and simplify cable management.
- High-Performance OS2 Single-Mode Fiber: Built with 9/125μm OS2 single-mode optical fiber supporting high-bandwidth 10G/40G/100G/400G applications at 1310nm and 1550nm wavelengths.
- Precision APC End-Face Polish: Angled Physical Contact (APC) polishing ensures high return loss (≥60dB) and a low maximum insertion loss of ≤0.35dB to minimize signal back reflection.
- Type B Polarity Configuration: Utilizes standard Type B (Key-Up to Key-Up) polarity for straightforward connection between MPO cassettes, patch panels, and transceivers.
- Flame-Retardant Yellow LSZH Jacket: Encased in an 8.5-9.0mm yellow LSZH/OFNR outer jacket with 0.8m breakout legs for safe and flexible cabinet routing.
TECHNICAL SPECIFICATIONS
| Connector Type | 4x MPO-12 Male to 4x MPO-12 Male |
| Fiber Mode & Grade | OS2 Single-mode (9/125μm) |
| Polish Type | APC to APC |
| Polarity | Type B |
| Fiber Count | 48 Fibers (4 x 12F) |
| Operating Wavelength | 1310 nm / 1550 nm |
| Cable Jacket Rating & Color | LSZH / OFNR, Yellow |
| Cable Outer Diameter (OD) | 8.5 mm - 9.0 mm |
| Breakout OD & Length | 3.0 mm OD / 0.8 m (80 cm) Breakout Length |
| Insertion Loss | ≤ 0.35 dB |
| Return Loss | ≥ 60 dB |
| Attenuation (1310 nm) | ≤ 0.35 dB/km |
| Attenuation (1550 nm) | ≤ 0.21 dB/km |
| Tensile Strength | 150 N (Long Term) / 500 N (Short Term) |
| Connector Durability | ≥ 500 - 1000 Mating Cycles |
| Operating Temperature | -20°C to +70°C |
