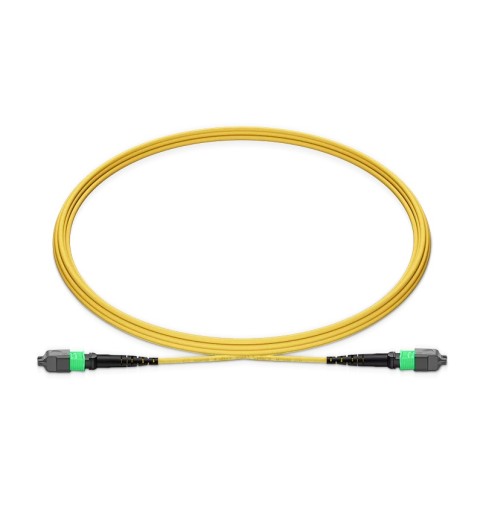

MTP®-24 APC(Female) to MTP®-24 APC(Female) 24 Fibers Single-mode (OS2) Jumper, Type A, LSZH, 3.0mm, Max IL ≤ 0.35dB, Yellow
- Product Code: S2MTPA16F
- Availability: In Stock
Cable Type: MTP-24 APC OS2
The MTP®-24 APC Female to MTP®-24 APC Female 24 Fibers OS2 Single-mode Patch Cord is a high-density optical jumper built with authentic US Conec connectors. Designed for seamless interconnectivity in modern data centers, telecommunication networks, and high-speed enterprise backbones, this assembly provides exceptional optical performance and maximum space efficiency.
KEY FEATURES & BENEFITS
- Genuine US Conec MTP® Connectors: Premium 24-fiber connectors ensure superior alignment, lower insertion loss, and outstanding mechanical durability.
- Low Insertion Loss: Precision APC polishing maintains a maximum insertion loss of ≤0.35dB and high return loss of ≥60dB.
- Bend-Insensitive OS2 Fiber: Manufactured with G.657.A1 fiber grade (compatible with G.652.D), allowing tight bend radii down to 10mm without signal degradation.
- Type A Polarity: Straight-through wiring configuration suitable for standard optical network architectures and cassette-to-cassette links.
- LSZH Safety Rated Jacket: Low Smoke Zero Halogen (LSZH/OFNR) outer sheath minimizes toxic emissions in the event of fire.
TECHNICAL SPECIFICATIONS
| Connector Type | US Conec MTP® Female to MTP® Female |
| Fiber Mode & Grade | OS2 Single-mode (9/125μm), G.657.A1 (Compatible with G.652.D) |
| Polish Type | APC to APC |
| Polarity | Type A |
| Fiber Count | 24 Fibers |
| Operating Wavelength | 1310 nm / 1550 nm |
| Cable Jacket Rating | LSZH / OFNR |
| Cable Outer Diameter | 3.0 mm |
| Insertion Loss | ≤ 0.35 dB |
| Return Loss | ≥ 60 dB |
| Attenuation (1310 nm) | ≤ 0.35 dB/km |
| Attenuation (1550 nm) | ≤ 0.21 dB/km |
| Min. Bend Radius (Core / Cable) | 10 mm / 10D (Dynamic) - 5D (Static) |
| Tensile Strength | 80 N (Long Term) / 150 N (Short Term) |
| Connector Durability | ≥ 500 - 1000 Mating Cycles |
| Operating Temperature | -20°C to +70°C |
