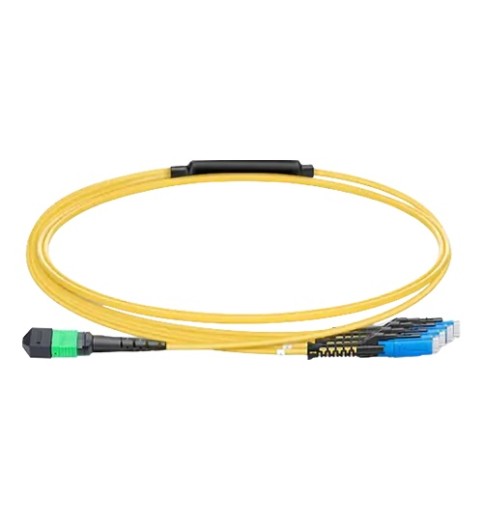

MPO-8 APC (Female) to 4x MDC Duplex UPC Single-mode (OS2) Harness, Type B, LSZH, Yellow
- Product Code: S2MPOAMDCU8FB
- Availability: In Stock
Cable Type: MPO-8 APC to 4 MDC UPC OS2
The MPO-8 APC Female to 4x MDC Duplex UPC OS2 Single-mode Harness Cable is engineered for high-density optical interconnect applications in modern data centers and enterprise networks. This premium breakout harness transitions a single 8-fiber MPO connector into four MDC duplex connectors, facilitating seamless migration to high-speed optical transceivers and interconnect architectures.
KEY FEATURES & BENEFITS
- High-Density MDC Connectors: Utilizes Very Small Form Factor (VSFF) MDC duplex connectors to significantly save panel space compared to traditional LC interfaces.
- Low Insertion Loss: Precision-polished optical connectors deliver maximum insertion loss of ≤0.35dB on MPO and ≤0.2dB on MDC connectors.
- Bend-Insensitive OS2 Fiber: Built with G.657.A1 fiber grade (compatible with G.652.D), ensuring outstanding flexibility with a minimum bend radius down to 10mm.
- Safety & Compliance: Encased in a Low Smoke Zero Halogen (LSZH/OFNR) jacket to meet stringent flame-retardancy and fire safety standards.
- Standardized Polarity: Configured in Type B polarity to streamline multi-fiber backbone installations.
TECHNICAL SPECIFICATIONS
| Connector Type | MPO Female to 4x MDC Duplex |
| Fiber Mode & Grade | OS2 Single-mode (9/125μm), G.657.A1 (Compatible with G.652.D) |
| Polish Type | APC (MPO) to UPC (MDC) |
| Polarity | Type B |
| Fiber Count | 8 Fibers to 4x 2-Fiber breakouts |
| Operating Wavelength | 1310 nm / 1550 nm |
| Cable Jacket Rating | LSZH / OFNR |
| Outer Cable Diameter | 3.0 mm (Main Cable OD) / 2.0 mm (Breakout OD) |
| Insertion Loss | ≤ 0.35 dB (MPO) / ≤ 0.2 dB (MDC) |
| Return Loss | ≥ 60 dB (MPO) / ≥ 50 dB (MDC) |
| Attenuation (1310 nm) | ≤ 0.35 dB/km (MPO) / ≤ 0.3 dB/km (MDC) |
| Attenuation (1550 nm) | ≤ 0.21 dB/km (MPO) / ≤ 0.3 dB/km (MDC) |
| Min. Bend Radius (Core / Cable) | 10 mm / 10D (Dynamic) - 5D (Static) |
| Tensile Strength | 80 N (Long Term) / 150 N (Short Term) |
| Connector Durability | ≥ 500 - 1000 Mating Cycles |
| Operating Temperature | -20°C to +70°C |
