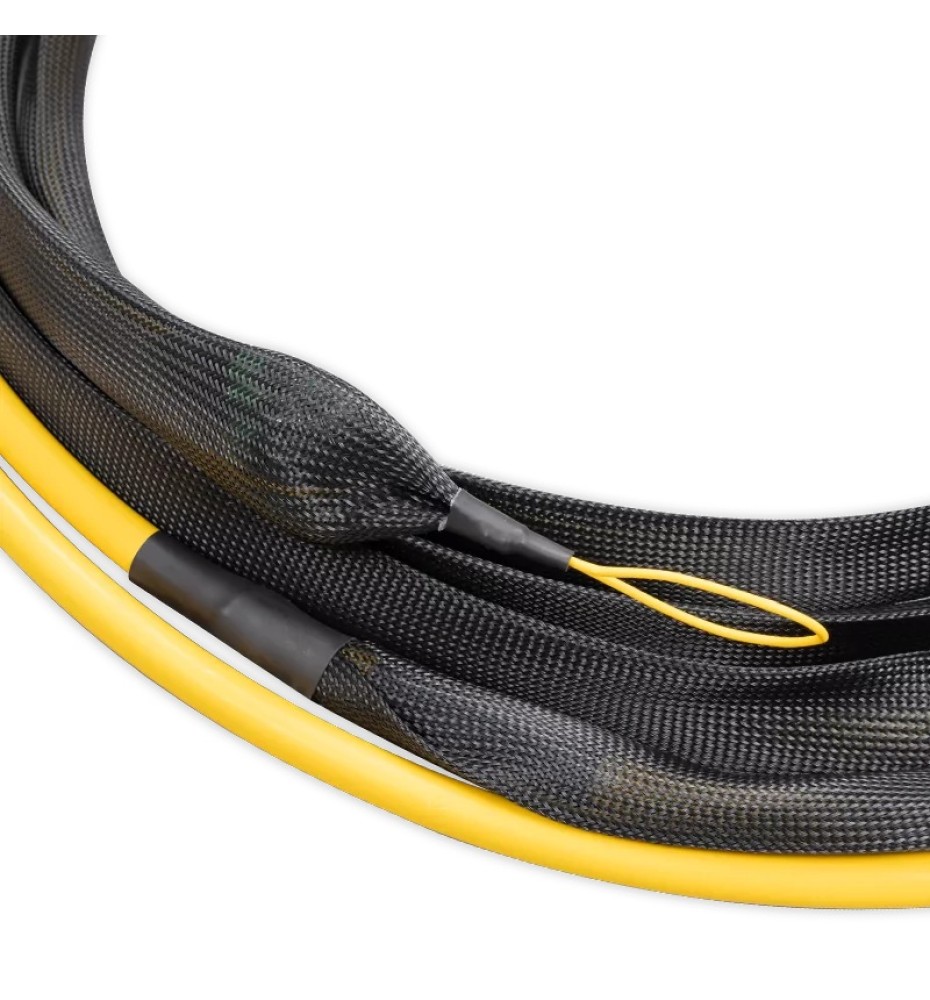

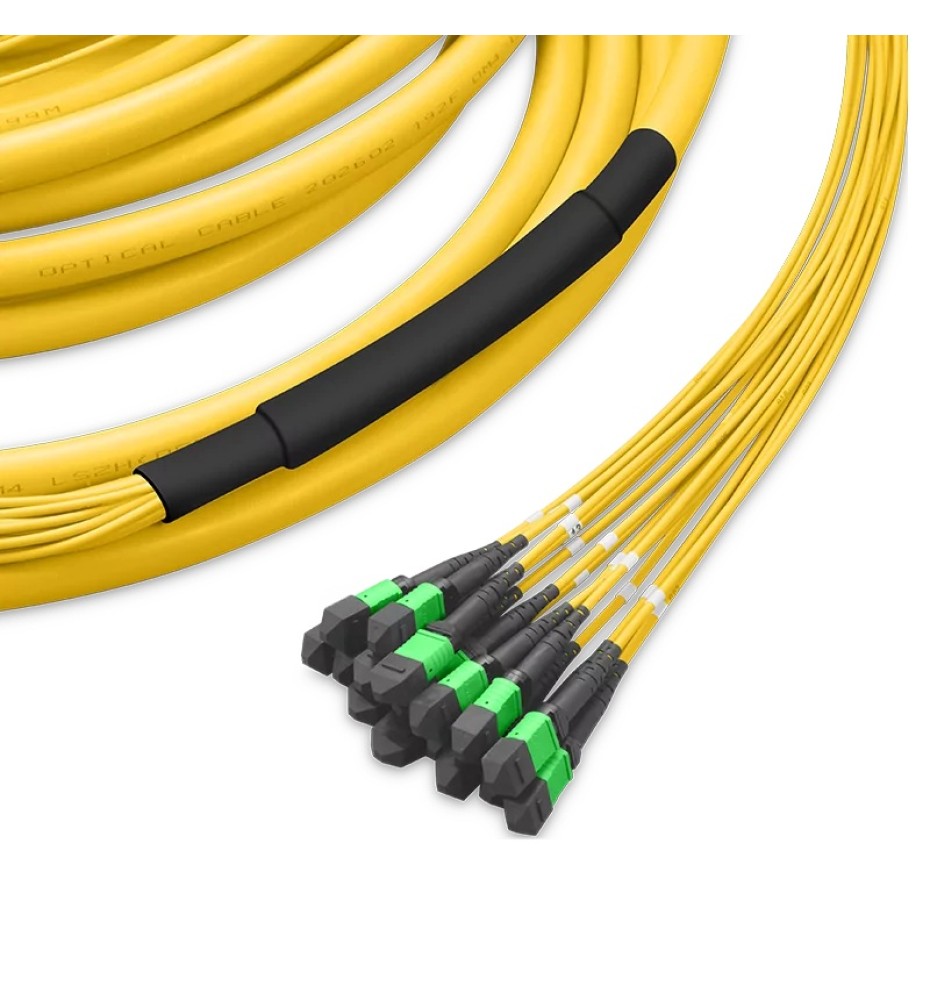

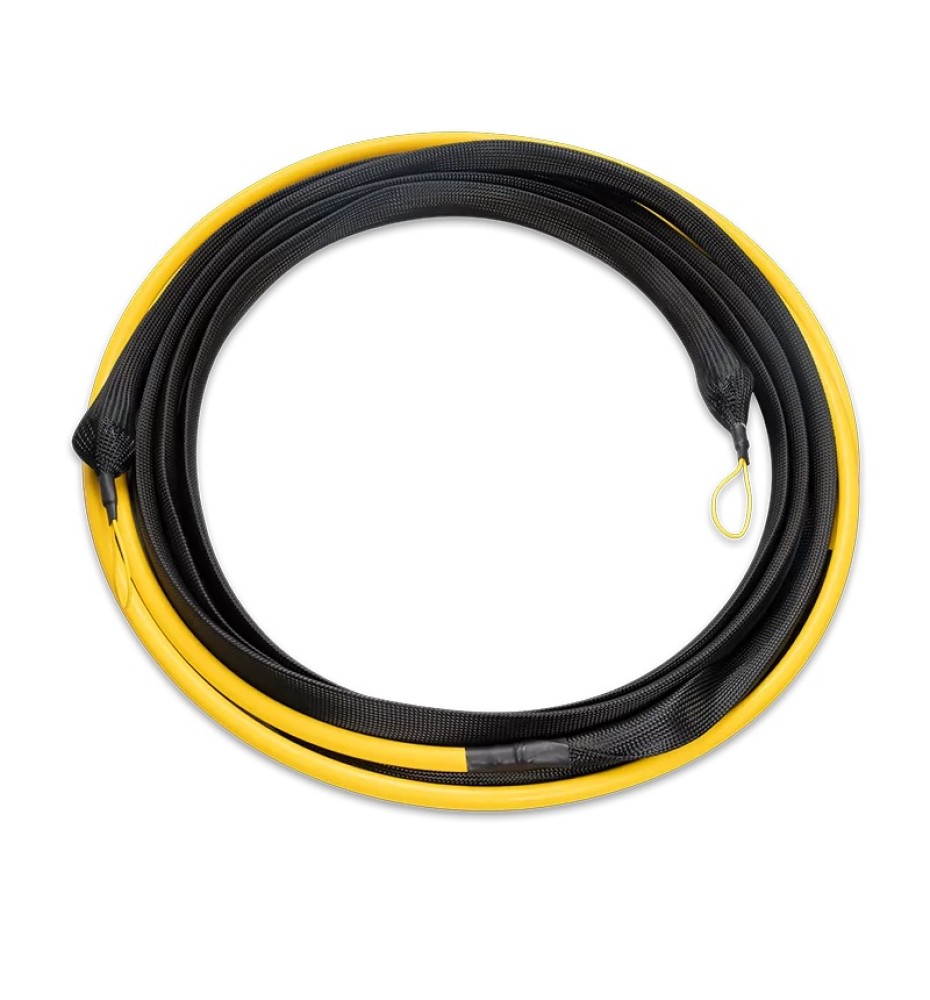

Pre-terminated MPO Trunk Cable, 192 Fibers, 16 x MPO-12 APC (Male) to 16 x MPO-12 APC (Male) Single Mode (OS2) Type B, LSZH, 0.35dB Max, Breakout 80cm, Double Jacket, Yellow
- Product Code: MF-S192MPOMAB
- Availability: In Stock
Cable Type: 192 Fibers 16 x MPO-12 Single Mode
SPECIFICATIONS
- Connector Type: MPO Male to Male
- Polish Type: APC to APC
- Polarity: Type B
- Fiber Mode: OS2 9/125μm
- Fiber Count: 192 (16x12) Fibers
- Wavelength: 1310/1550nm
- Cable Jacket/Flame Rating: LSZH/OFNP
- Insertion Loss: ≤0.35dB
- Return Loss: ≥60dB
- Attenuation at 1310 nm: ≤0.35 dB/km
- Attenuation at 1550 nm: ≤0.21 dB/km
- Cable Outside Diameter (OD): 17.0-17.8mm
- Breakout Outside Diameter (OD): 3.0mm
- Tensile Strength: 250/800N (Long/Short Term)
- Connector Durability: ≥ 500 - 1000 times
- Breakout Length: 0.8m
- Operating Temperature: LSZH: -20~70°C, OFNP: 0~70°C
Tags: 192 fiber MPO, MPO-12 APC male, OS2 single mode, high density cabling, trunk cable, data center network, fiber optic, LSZH, double jacket
