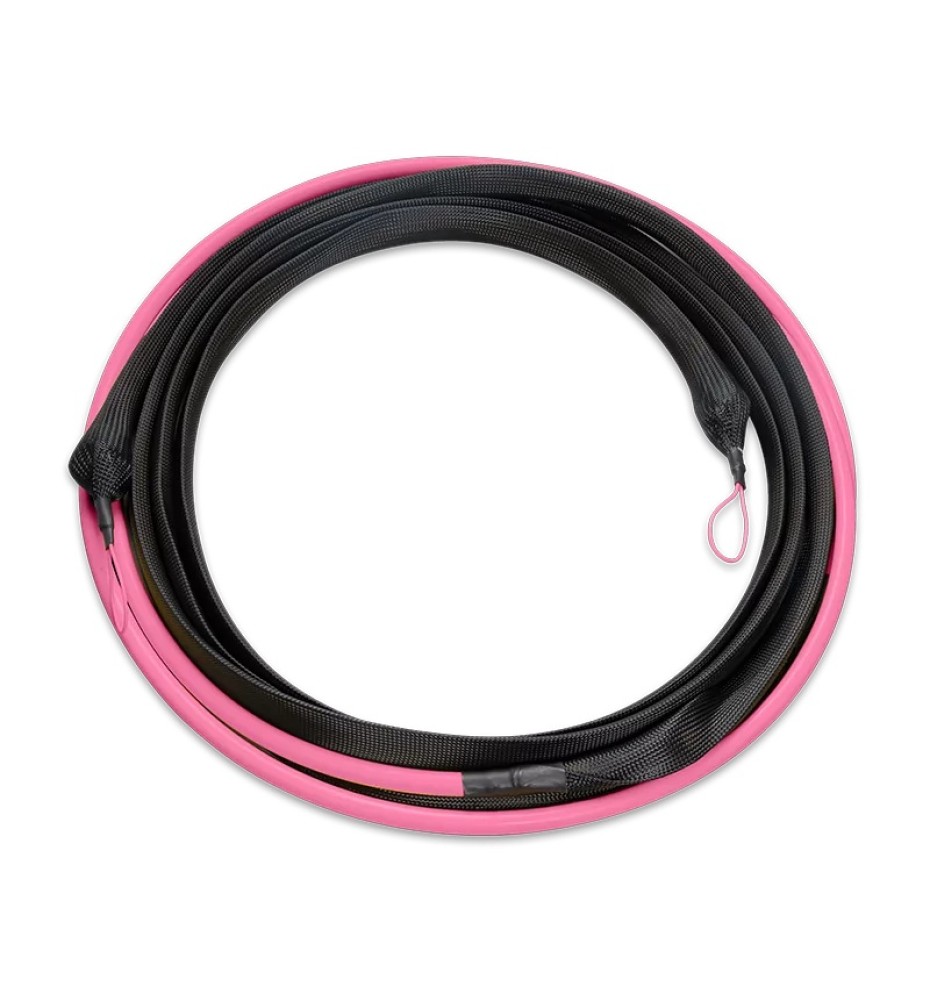

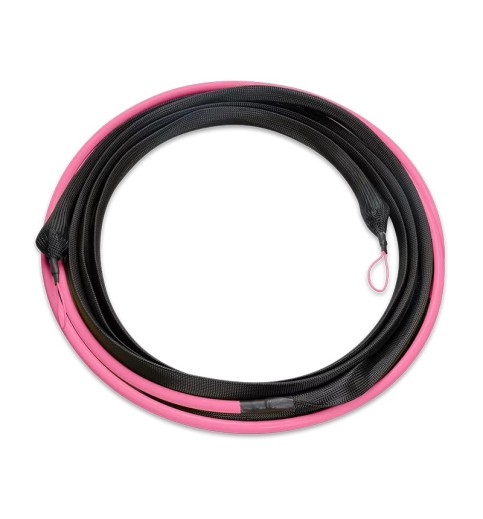

Cable Type: 192 Fibers 16 x MPO-12 Multimode

Item Spotlights

• Multi-core, high-density design reduces cable count and saves routing space
• On-site "plug and play", fast installation, improved deployment efficiency
• Ultra-low insertion loss and high return loss ensure link consistency
• LSZH sheath, ensure safe indoor deployment and OFNP fire safety-rated for use in plenum air spaces
• Flexible adaptation to various network architectures
• Suitable for high-density wiring systems such as data centers, racks, panels, backplanes, etc
• 3-year warranty, lifetime after-sales technical support

Product Highlights

Enhance Link Stability & Deployment Efficiency

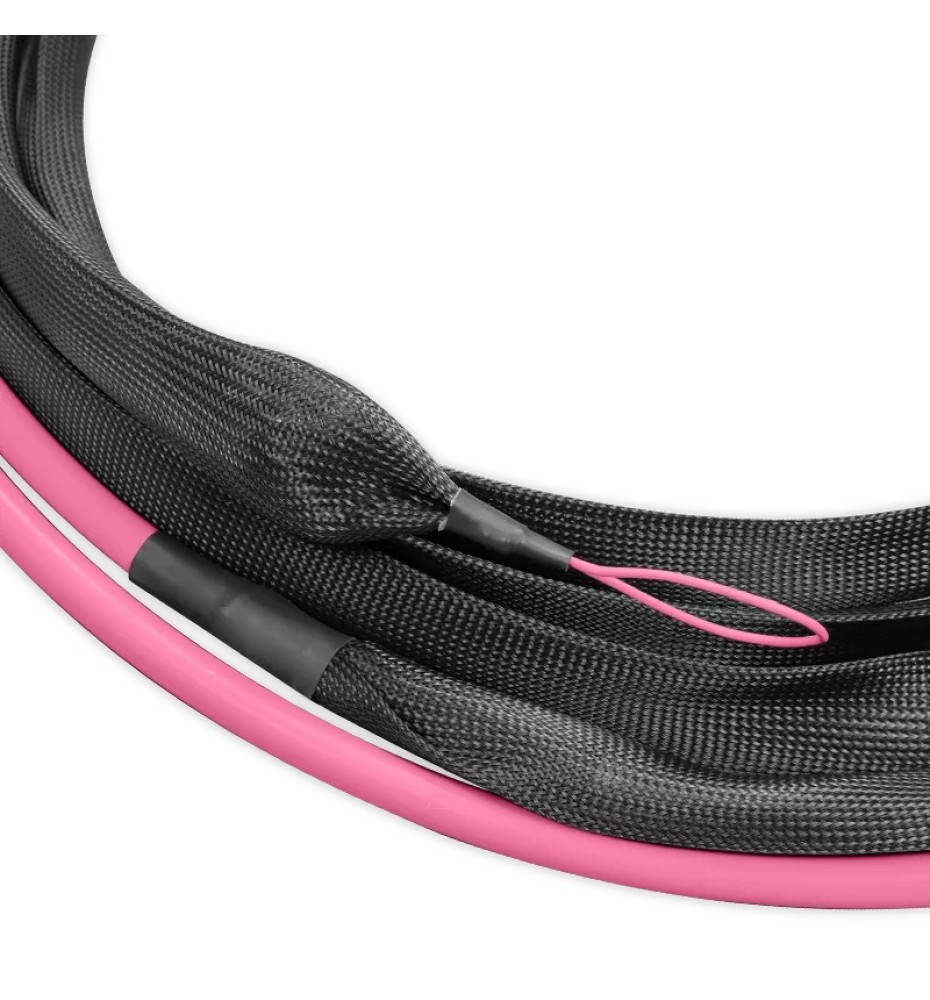

MPO trunk cables feature a double-sheath design to enhance tensile strength. They are pre-terminated and rigorously tested before leaving the factory, enabling true "plug and play" and quick installation. They are the best choice for high-density cabling scenarios, combining durability and stability.

High-Density Trunk Cabling for Scalable Data Centers

High-density MPO trunk cables are available in 48, 72, 96, and 192 fibers. They comply with TIA/EIA and IEC standards, delivering low insertion loss and high return loss to support 40G, 100G, 400G, and higher-speed transmission. Designed for backbone interconnections between MDA, IDA, and EDA in data centers, they simplify high-density cabling management and provide a reliable foundation for scalable infrastructure deployment.

Specifications

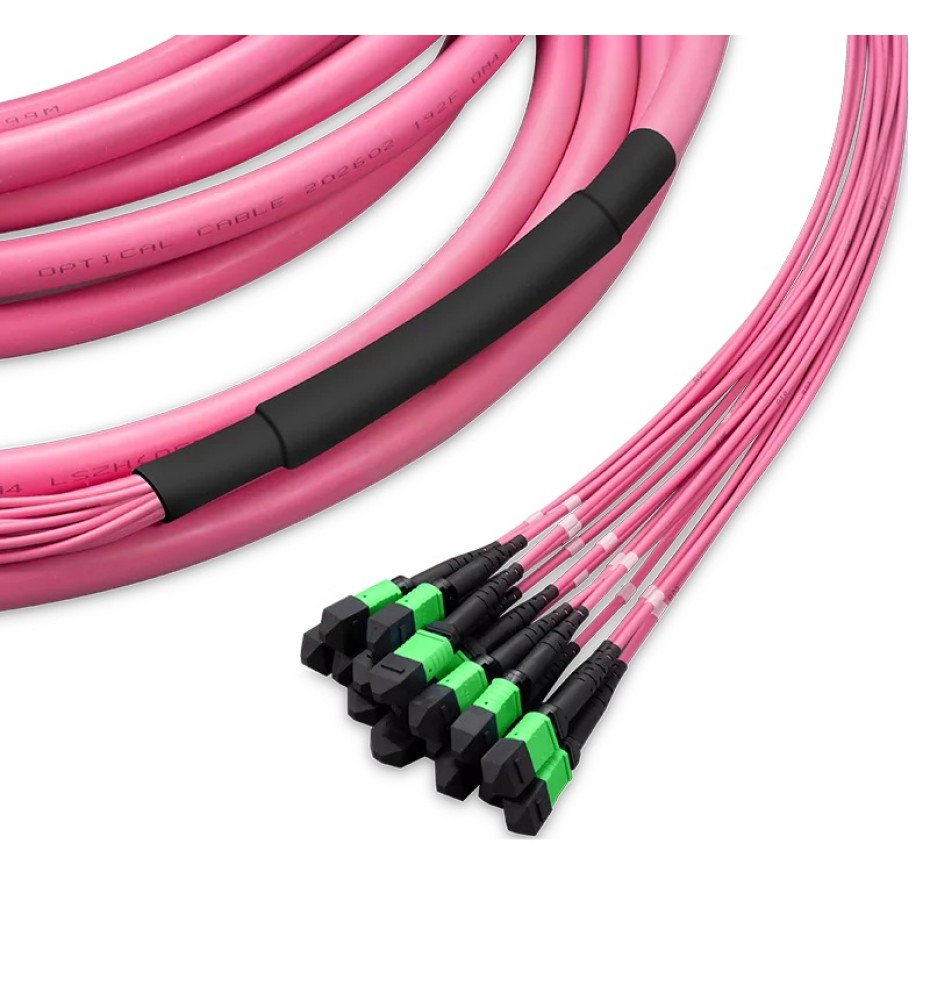

• Connector Type: MPO Male to Male
• Polish Type: APC to APC
• Polarity: Type B
• Fiber Mode: OM4 50/125μm
• Fiber Count: 192 (16x12) Fibers
• Wavelength: 850/1300nm
• Cable Jacket/Flame Rating: LSZH/OFNP
• Insertion Loss: ≤0.35dB
• Return Loss: ≥35dB
• Attenuation at 850 nm: ≤2.3 dB/km
• Attenuation at 1300 nm: ≤1.0 dB/km
• Cable Outside Diameter (OD): 17.0-17.8mm
• Breakout Outside Diameter (OD): 3.0mm
• Tensile Strength: 250/800N (Long/Short Term)
• Connector Durability: ≥ 500 - 1000 times
• Breakout Length: 0.8m
• Operating Temperature: LSZH: -20~70°C, OFNP: 0~70°C
