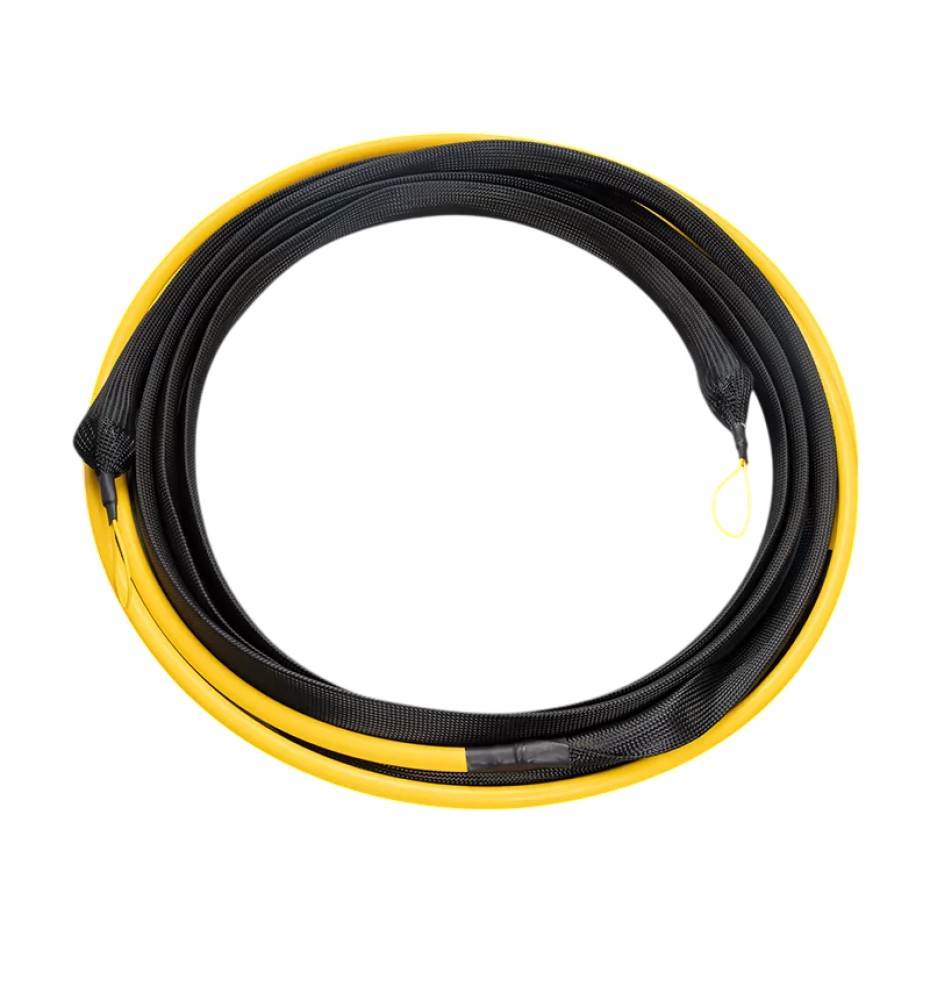

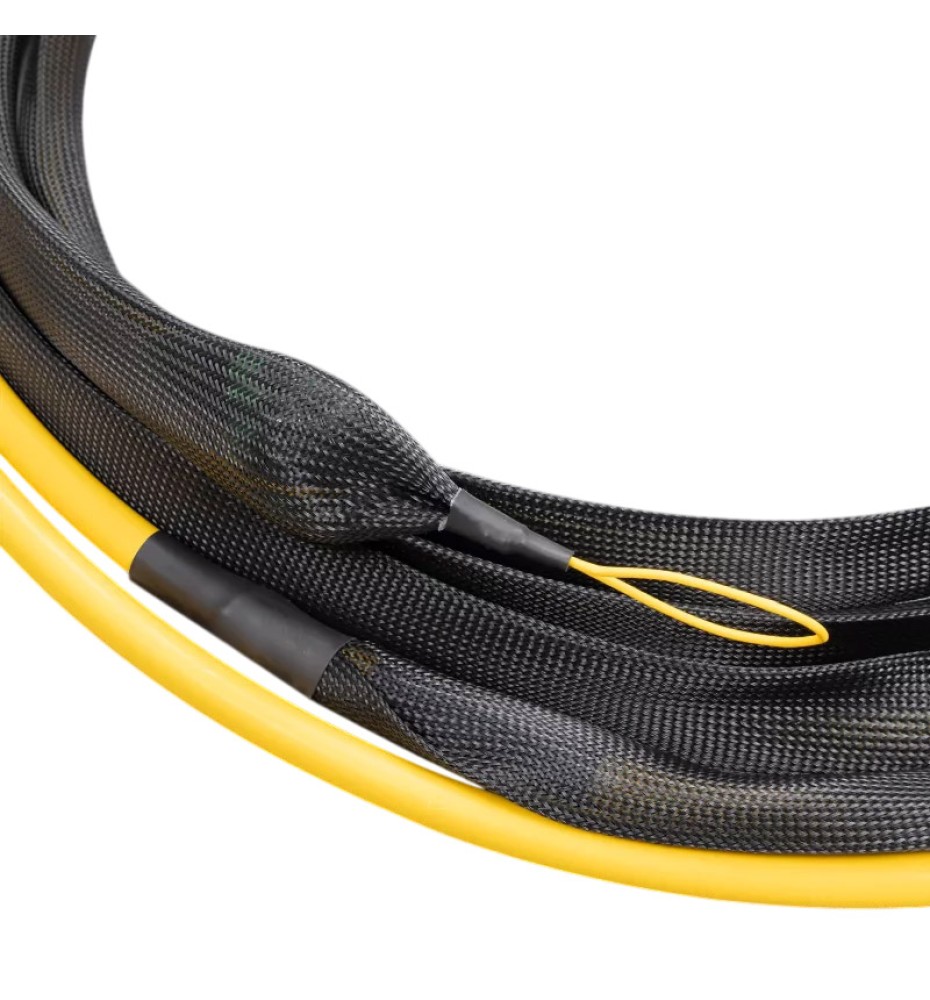

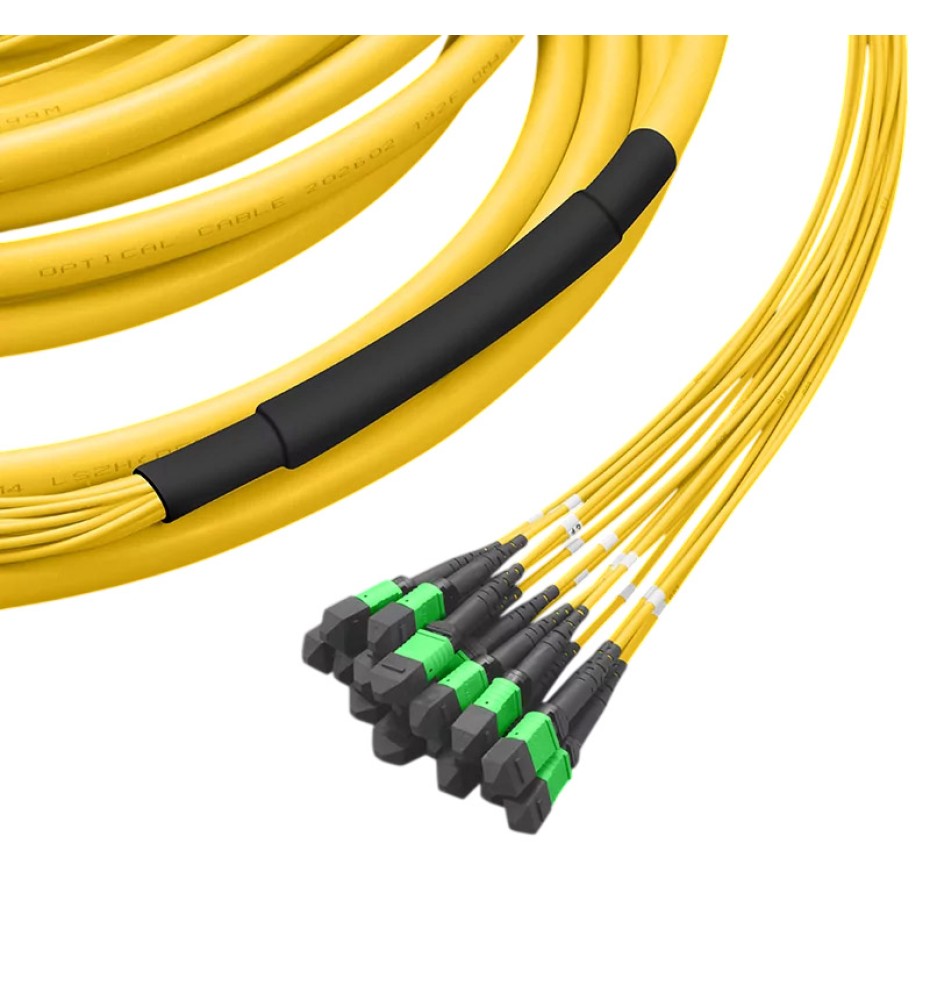

Pre-terminated MPO Trunk Cable, 192 Fibers, 16 x MPO-12 APC (Male) to 16 x MPO-12 APC (Male) Single Mode (OS2) Type B, LSZH, 0.35dB Max, Breakout 80cm, Double Jacket, Yellow
- Product Code: MF-S192MPOMAB
- Availability: In Stock
This pre-terminated MPO trunk cable offers 192-fiber OS2 single-mode connectivity with 16 x MPO-12 APC (Male) to 16 x MPO-12 APC (Male) connectors. It features Type B polarity and a double-jacketed yellow LSZH sheath for robust environmental protection. Designed with an 80cm breakout, it provides low-loss (≤ 0.35dB) high-density backbone support.
SPECIFICATION
| Connector Type | MPO Female to Female |
| Polish Type | APC to APC |
| Polarity | Type B |
| Fiber Mode | OS2 9/125μm |
| Fiber Count | 192(16x12) Fibers |
| Wavelength | 1310/1550nm |
| Cable Jacket/Flame Rating | LSZH/OFNP |
| Insertion Loss | ≤0.35dB |
| Return Loss | ≥60dB |
| Attenuation at 1310 nm | ≤0.35 dB/km |
| Attenuation at 1550 nm | ≤0.21 dB/km |
| Cable Outside Diameter (OD) | 17.0-18.0mm |
| Breakout Outside Diameter (OD) | 3.0mm |
| Tensile Strength | 200/660N (Long/Short Term) |
| Connector Durability | ≥ 500 - 1000 times |
| Breakout Length | 3m |
| Operating Temperature | LSZH: -20~70°C, OFNP: 0~70°C |
*Specifications are subject to change.
